R191621017

Active

Radiall USA, Inc.

NEX 10 SMA 3.5 M ADP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R191621017

Adapter Series	NEX10 to SMA
Adapter Type	Plug to Jack
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	NEX10 Jack, Female Socket
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	20 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

R19162 Series

Part	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Style	Convert From (Adapter End)	Adapter Type	Mounting Type	Center Contact Material	Frequency - Max [Max]	Center Gender	Adapter Series	Center Contact Plating	Body Material	Conversion Type	Convert To (Adapter End)	Impedance	Fastening Type	Adapter Series [Max]	Adapter Series [Min]
Radiall USA, Inc. R191620037	Polytetrafluoroethylene (PTFE)	90 °C	-55 °C	Straight	4.3/10 Jack Female Socket	Jack to Jack	Free Hanging (In-Line)	Beryllium Copper	6000 MHz	Female to Female	4.3/10 to NEX10	Silver	Brass	Between Series	Female Socket NEX10 Jack	50 Ohms
Radiall USA, Inc. R191621017	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Straight	NEX10 Jack Female Socket	Plug to Jack	Free Hanging (In-Line)	Beryllium Copper	20 GHz		NEX10 to SMA	Gold	Brass	Between Series	Male Pin SMA Plug	50 Ohms	Snap-On Threaded
Radiall USA, Inc. R191620007	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Straight	NEX10 Plug Male Pin	Plug to Jack	Free Hanging (In-Line)	Beryllium Copper	11 GHz			Silver	Brass	Between Series	Female Socket N Jack	50 Ohms	Push-Pull Threaded	N	NEX10
Radiall USA, Inc. R191621007	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Straight	NEX10 Plug Male Pin	Plug to Jack	Free Hanging (In-Line)	Beryllium Copper	20 GHz		NEX10 to SMA	Gold	Brass	Between Series	Female Socket SMA Jack	50 Ohms	Snap-On Threaded
Radiall USA, Inc. R191620027	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Straight	NEX10 Jack Female Socket	Jack to Jack	Free Hanging (In-Line)	Beryllium Copper	11 GHz	Female to Female		Silver	Brass	Between Series	Female Socket N Jack	50 Ohms		N	NEX10
Radiall USA, Inc. R191620017	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Straight	7/16 Plug Male Pin	Plug to Jack	Free Hanging (In-Line)	Beryllium Copper	6000 MHz		7/16 NEX10	Silver	Brass	Between Series	Female Socket NEX10 Jack	50 Ohms	Snap-On Threaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 222.06

Description

General part information

R19162 Series

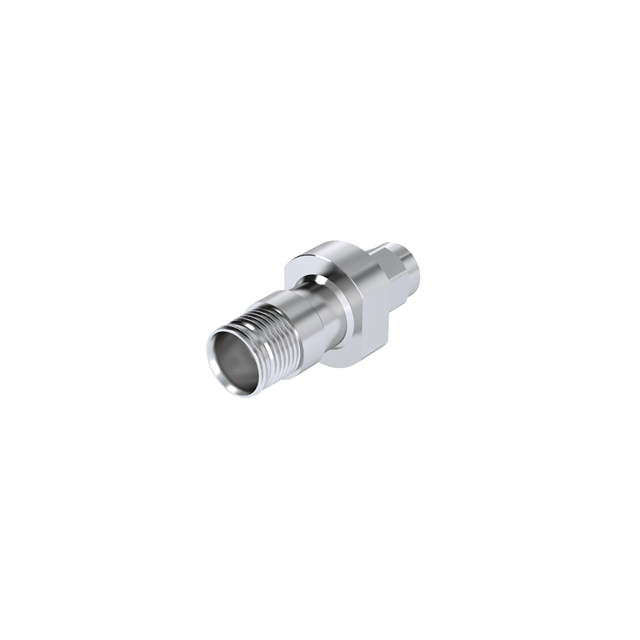

Adapter Coaxial Connector NEX10 Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
