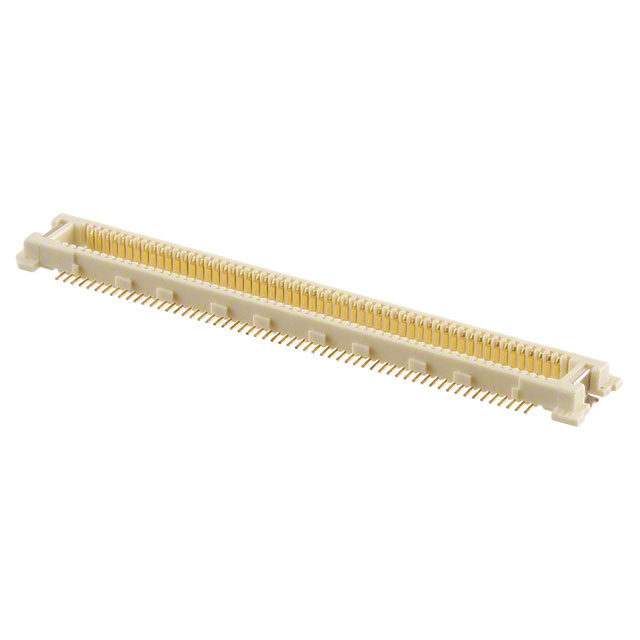

FX11LB-116P-SV(21)

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ]0.5MM PITCH 2.0-3.0MM HEIGHT WITH GROUND PLATE HIGH-SPEED BOARD-TO-BOARD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FX11 Series

FX11LB-116P-SV(21)

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ]0.5MM PITCH 2.0-3.0MM HEIGHT WITH GROUND PLATE HIGH-SPEED BOARD-TO-BOARD

Deep-Dive with AI

DocumentsDatasheet FX11 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX11LB-116P-SV(21)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board	1.9 mm
Height Above Board	0.075 "
Mated Stacking Heights	2 mm
Mounting Type	Surface Mount
Number of Positions	116
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX11LB Series

Part	Number of Positions	Features	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Height Above Board	Height Above Board	Contact Finish
Hirose Electric USA, Inc. FX11LB-120P/12-SV(92)	120	Ground Plate Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Header Outer Shroud Contacts	2 mm	1.64 mm	0.064 in	Gold
Hirose Electric USA, Inc. FX11LB-140S-SV	140	Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold
Hirose Electric USA, Inc. FX11LB-80P/8-SV(91)	80	Ground Plate Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Header Outer Shroud Contacts	2 mm	1.64 mm	0.064 in	Gold
Hirose Electric USA, Inc. FX11LB-60S/6-SV(92)	60	Ground Plate Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold
Hirose Electric USA, Inc. FX11LB-116S-SV	116	Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold
Hirose Electric USA, Inc. FX11LB-140S-SV(22)	140	Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold
Hirose Electric USA, Inc. FX11LB-116P-SV(21)	116	Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Header Outer Shroud Contacts	2 mm	1.9 mm	0.075 "	Gold
Hirose Electric USA, Inc. FX11LB-140S-SV(21)	140	Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold
Hirose Electric USA, Inc. FX11LB-100S/10-SV	100	Ground Plate Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold
Hirose Electric USA, Inc. FX11LB-116S-SV(22)	116	Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.18
	Digi-Reel®	1	$ 4.18
	Tape & Reel (TR)	1000	$ 2.48
Newark	Each (Supplied on Full Reel)	1	$ 4.16
		5000	$ 3.68

Description

General part information

FX11LB Series

116 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

FX11 Series

Datasheet
