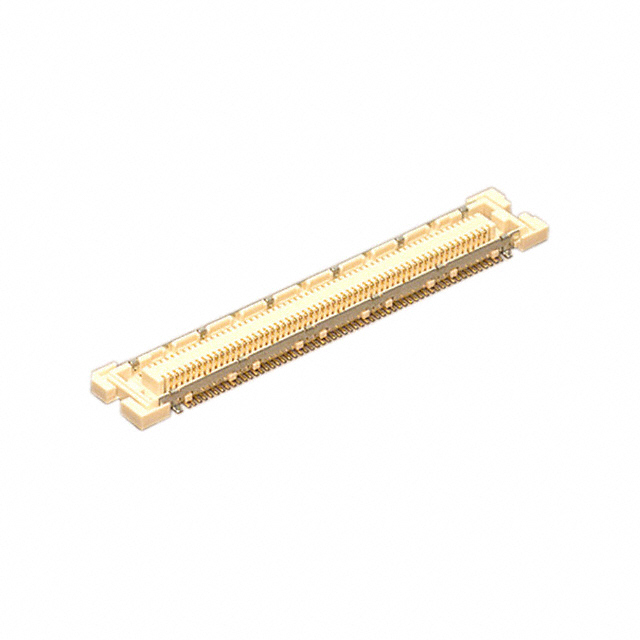

FX11LB-116S-SV

Active

Hirose Electric USA, Inc.

CONN RCPT 116POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFX11LB-116S-SV Spec Datasheet

FX11LB-116S-SV

Active

Hirose Electric USA, Inc.

CONN RCPT 116POS SMD GOLD

Deep-Dive with AI

DocumentsFX11LB-116S-SV Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX11LB-116S-SV

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board	0.065 in
Height Above Board	1.65 mm
Mated Stacking Heights	2 mm
Mounting Type	Surface Mount
Number of Positions	116
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX11LB Series

Part	Number of Positions	Features	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Height Above Board	Height Above Board	Contact Finish
Hirose Electric USA, Inc. FX11LB-120P/12-SV(92)	120	Ground Plate Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Header Outer Shroud Contacts	2 mm	1.64 mm	0.064 in	Gold
Hirose Electric USA, Inc. FX11LB-140S-SV	140	Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold
Hirose Electric USA, Inc. FX11LB-80P/8-SV(91)	80	Ground Plate Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Header Outer Shroud Contacts	2 mm	1.64 mm	0.064 in	Gold
Hirose Electric USA, Inc. FX11LB-60S/6-SV(92)	60	Ground Plate Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold
Hirose Electric USA, Inc. FX11LB-116S-SV	116	Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold
Hirose Electric USA, Inc. FX11LB-140S-SV(22)	140	Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold
Hirose Electric USA, Inc. FX11LB-116P-SV(21)	116	Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Header Outer Shroud Contacts	2 mm	1.9 mm	0.075 "	Gold
Hirose Electric USA, Inc. FX11LB-140S-SV(21)	140	Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold
Hirose Electric USA, Inc. FX11LB-100S/10-SV	100	Ground Plate Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold
Hirose Electric USA, Inc. FX11LB-116S-SV(22)	116	Solder Retention	Surface Mount	0.5 mm	0.02 in	2	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	2 mm	1.65 mm	0.065 in	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	60	$ 4.20

Description

General part information

FX11LB Series

116 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

FX11LB-116S-SV Spec

Datasheet
