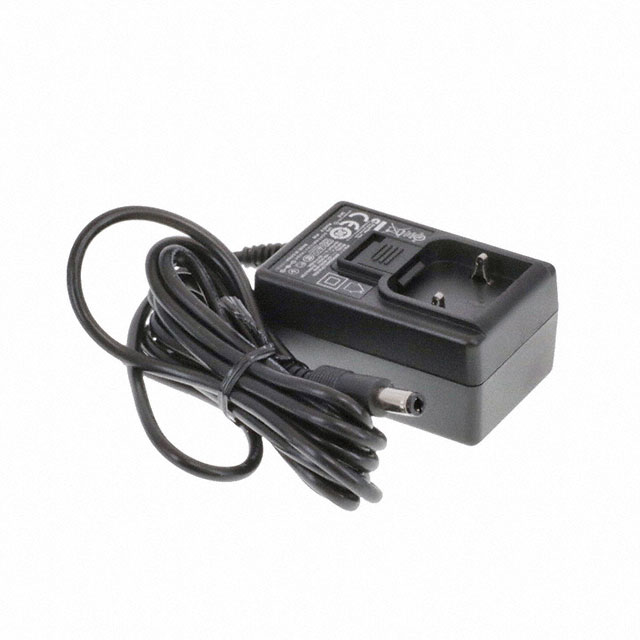

WR9QD660LCP-N(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 9V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QD660LCP-N(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 9V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QD660LCP-N(R6B)

Applications	ITE (Commercial)
Approval Agency	PSE, BSI, EAC, CCC, FCC, cULus, CB, VCCI, RCM, UKRSepro, CE, LPS, GS
Cord Length	1.83 m
Cord Length	72 in
Current - Output (Max) [Max]	660 mA
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	International
Size / Dimension [x]	64 mm
Size / Dimension [x]	2.52 in
Size / Dimension [y]	1.59 "
Size / Dimension [y]	40.5 mm
Size / Dimension [z]	1.24 "
Size / Dimension [z]	31.5 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V

WR9QD660 Series

Part	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Input Type	Current - Output (Max) [Max]	Efficiency	Approval Agency	No Load Power Consumption	Polarization	Voltage - Output	Cord Length	Cord Length	Region Utilized	Input Connector	Form	Power (Watts)	Standard Number	Output Connector	Output Connector [diameter]	Output Connector [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Output Connector [x]
GlobTek, Inc. WR9QD660CCPNNAR6B	Household Appliances ITE (Commercial) Medical	31.5 mm	1.59 "	1.24 "	2.44 in	40.5 mm	62 mm	Multi-Blade (Included)	660 mA	CoC Tier 2 Level VI	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UKRSepro VCCI	100 mW	Positive Center	9 V	1.83 m	72 in	International	Multi-Blade (Included)	Wall Mount (Class II)	6 W	60335-1 60601-1 60950-1 62368-1	Barrel Plug	2.1 mm 5.5 mm	11 mm	40 °C	0 °C	90 VAC	264 VAC
GlobTek, Inc. WR9QD660LCP-N(R6B)	ITE (Commercial)	31.5 mm	1.59 "	1.24 "	2.52 in	40.5 mm	64 mm	Multi-Blade (Sold Separately)	660 mA	CoC Tier 2 Level VI	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UKRSepro VCCI		Positive Center	9 V	1.83 m	72 in	International	Multi-Blade	Wall Mount (Class II)	6 W	60950-1	Barrel Plug	2.5 mm 5.5 mm		40 °C	0 °C	90 VAC	264 VAC	75 mW	11 mm
GlobTek, Inc. WR9QD660T00NAIMR6B	Household Appliances ITE (Commercial) Medical	36.8 mm	2.91 "	1.45 in	1.71 "	74 mm	43.5 mm	Multi-Blade (Sold Separately)	660 mA	Level VI	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI			9 V	1.5 m	59 in	International	Multi-Blade	Wall Mount (Class II)	6 W	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.3mm x 3.5mm Barrel Plug Kit			50 °C	-20 C	90 VAC	264 VAC	75 mW
GlobTek, Inc. WR9QD660T00-IMR6B	Household Appliances ITE (Commercial) Medical	36.8 mm	2.91 "	1.45 in	1.71 "	74 mm	43.5 mm	Multi-Blade (Sold Separately)	660 mA	Level VI	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI			9 V	1.5 m	59 in	International	Multi-Blade	Wall Mount (Class II)	6 W	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.3mm x 3.5mm Barrel Plug Kit			50 °C	-20 C	90 VAC	264 VAC	75 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.66
		5	$ 6.48
		10	$ 6.34

Description

General part information

WR9QD660 Series

9V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
