WR9QD660CCPNNAR6B

Active

GlobTek, Inc.

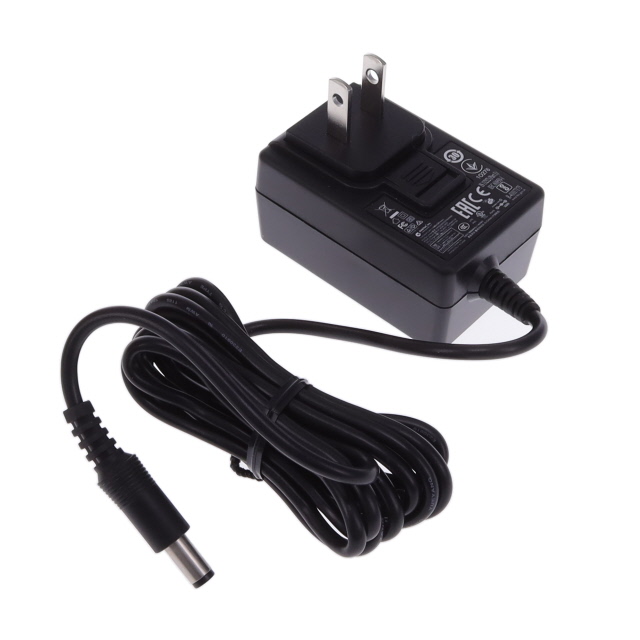

AC/DC WALL MOUNT ADAPTER 9V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QD660CCPNNAR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 9V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QD660CCPNNAR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	PSE, BSI, EAC, CCC, FCC, cULus, CB, VCCI, RCM, UKRSepro, CE, LPS, GS
Cord Length	1.83 m
Cord Length	72 in
Current - Output (Max) [Max]	660 mA
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade (Included)
Input Type	Multi-Blade (Included)
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	International
Size / Dimension [x]	2.44 in
Size / Dimension [x]	62 mm
Size / Dimension [y]	1.59 "
Size / Dimension [y]	40.5 mm
Size / Dimension [z]	31.5 mm
Size / Dimension [z]	1.24 "
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V

WR9QD660 Series

Part	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Input Type	Current - Output (Max) [Max]	Efficiency	Approval Agency	No Load Power Consumption	Polarization	Voltage - Output	Cord Length	Cord Length	Region Utilized	Input Connector	Form	Power (Watts)	Standard Number	Output Connector	Output Connector [diameter]	Output Connector [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Output Connector [x]
GlobTek, Inc. WR9QD660CCPNNAR6B	Household Appliances ITE (Commercial) Medical	31.5 mm	1.59 "	1.24 "	2.44 in	40.5 mm	62 mm	Multi-Blade (Included)	660 mA	CoC Tier 2 Level VI	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UKRSepro VCCI	100 mW	Positive Center	9 V	1.83 m	72 in	International	Multi-Blade (Included)	Wall Mount (Class II)	6 W	60335-1 60601-1 60950-1 62368-1	Barrel Plug	2.1 mm 5.5 mm	11 mm	40 °C	0 °C	90 VAC	264 VAC
GlobTek, Inc. WR9QD660LCP-N(R6B)	ITE (Commercial)	31.5 mm	1.59 "	1.24 "	2.52 in	40.5 mm	64 mm	Multi-Blade (Sold Separately)	660 mA	CoC Tier 2 Level VI	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UKRSepro VCCI		Positive Center	9 V	1.83 m	72 in	International	Multi-Blade	Wall Mount (Class II)	6 W	60950-1	Barrel Plug	2.5 mm 5.5 mm		40 °C	0 °C	90 VAC	264 VAC	75 mW	11 mm
GlobTek, Inc. WR9QD660T00NAIMR6B	Household Appliances ITE (Commercial) Medical	36.8 mm	2.91 "	1.45 in	1.71 "	74 mm	43.5 mm	Multi-Blade (Sold Separately)	660 mA	Level VI	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI			9 V	1.5 m	59 in	International	Multi-Blade	Wall Mount (Class II)	6 W	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.3mm x 3.5mm Barrel Plug Kit			50 °C	-20 C	90 VAC	264 VAC	75 mW
GlobTek, Inc. WR9QD660T00-IMR6B	Household Appliances ITE (Commercial) Medical	36.8 mm	2.91 "	1.45 in	1.71 "	74 mm	43.5 mm	Multi-Blade (Sold Separately)	660 mA	Level VI	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI			9 V	1.5 m	59 in	International	Multi-Blade	Wall Mount (Class II)	6 W	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.3mm x 3.5mm Barrel Plug Kit			50 °C	-20 C	90 VAC	264 VAC	75 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.07
		5	$ 6.88
		10	$ 6.72

Description

General part information

WR9QD660 Series

9V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
