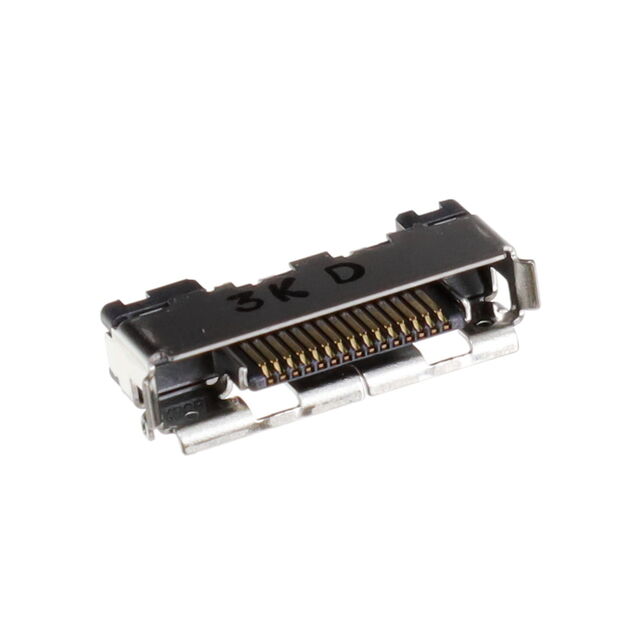

EX60B-15P
ActiveHirose Electric USA, Inc.
CONN RCPT 15POS R/A SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EX60B-15P
ActiveHirose Electric USA, Inc.
CONN RCPT 15POS R/A SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EX60B-15P |
|---|---|
| Connector Type | Receptacle, Non-Gendered |
| Contact Finish | Gold |
| Height Above Board [z] | 4 mm |
| Height Above Board [z] | 0.157 " |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Pitch [x] | 0.6 mm |
| Pitch [x] | 0.024 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.49 | |
| 10 | $ 4.08 | |||
| 25 | $ 3.87 | |||
| 50 | $ 3.78 | |||
| 100 | $ 3.60 | |||
| 250 | $ 3.15 | |||
| 500 | $ 3.06 | |||
| Digi-Reel® | 1 | $ 4.49 | ||
| 10 | $ 4.08 | |||
| 25 | $ 3.87 | |||
| 50 | $ 3.78 | |||
| 100 | $ 3.60 | |||
| 250 | $ 3.15 | |||
| 500 | $ 3.06 | |||
| Tape & Reel (TR) | 1200 | $ 2.61 | ||
| 2400 | $ 2.43 | |||
Description
General part information
EX60B Series
15 Position Connector Receptacle, Non-Gendered Surface Mount, Right Angle Gold
