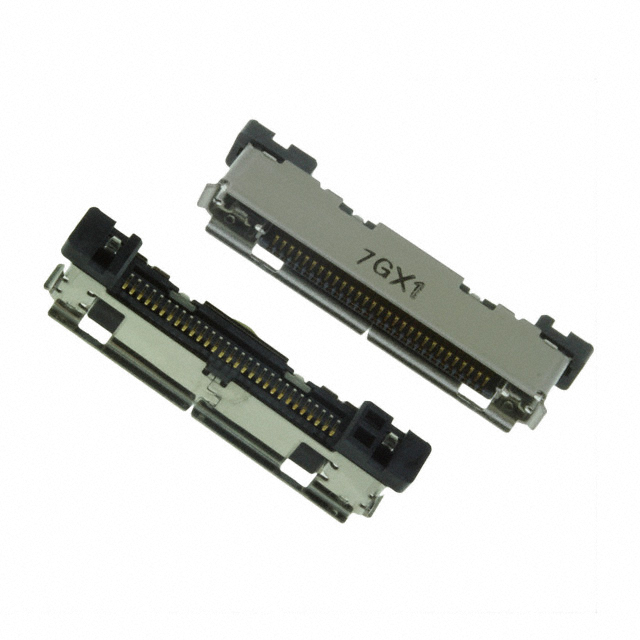

EX60B-29P-FL

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 29POS R/A SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 29POS R/A SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Number of Positions	Mounting Type	Contact Finish	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. EX60B-15S	0.171 in	4.35 mm	0.6 mm	0.024 in	Plug Non-Gendered	1	15	Surface Mount Right Angle	Gold
Hirose Electric USA, Inc. EX60B-29S	0.171 in	4.35 mm	0.6 mm	0.024 in	Plug Non-Gendered	1	29	Surface Mount Right Angle	Gold
Hirose Electric USA, Inc. EX60B-29P			0.6 mm	0.024 in	Receptacle Non-Gendered	1	29	Surface Mount Right Angle	Gold	4 mm	0.157 "
Hirose Electric USA, Inc. EX60B-29P-FL			0.6 mm	0.024 in	Receptacle Non-Gendered	1	29	Surface Mount Right Angle	Gold	4 mm	0.157 "
Hirose Electric USA, Inc. EX60B-15P			0.6 mm	0.024 in	Receptacle Non-Gendered	1	15	Surface Mount Right Angle	Gold	4 mm	0.157 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

29 Position Connector Receptacle, Non-Gendered Surface Mount, Right Angle Gold
