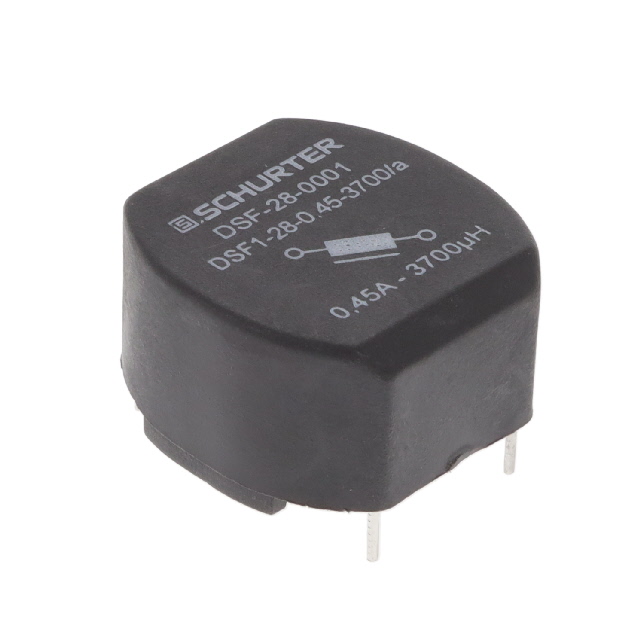

DSF-28-0001

Active

SCHURTER Inc.

CMC 450MA 2LN TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 450MA 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Number of Lines	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) (Max) [Max]	Package / Case	Current Rating (Max) [Max]
SCHURTER Inc. DSF-28-0008	Through Hole	125 °C	-40 °C	600 V	2	28.3 mm	1.079 "	1.114 in	27.4 mm	10 mOhm	Nonstandard
SCHURTER Inc. DSF-28-0002	Through Hole	125 °C	-40 °C	600 V	2	28.3 mm	1.079 "	1.114 in	27.4 mm		Nonstandard
SCHURTER Inc. DSF-28-0005	Through Hole	125 °C	-40 °C	600 V	2	28.3 mm	1.079 "	1.114 in	27.4 mm	125 mOhm	Nonstandard	1.8 A
SCHURTER Inc. DSF-28-0007	Through Hole	125 °C	-40 °C	600 V	2	28.3 mm	1.079 "	1.114 in	27.4 mm	10 mOhm	Nonstandard
SCHURTER Inc. DSF-28-0001	Through Hole	125 °C	-40 °C	600 V	2	28.3 mm	1.079 "	1.114 in	27.4 mm	1.9 Ohm	Nonstandard	450 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Line Common Mode Choke Through Hole 450mA DCR 1.9Ohm

Technical documentation and resources

No documents available
