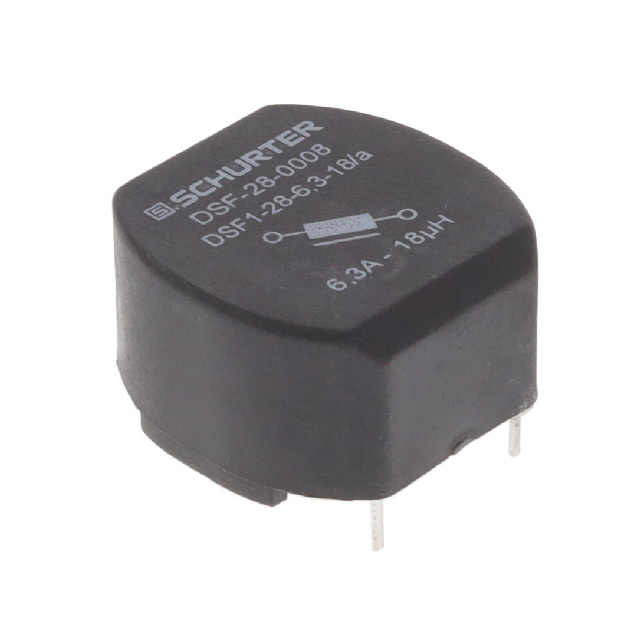

DSF-28-0008
ActiveSCHURTER Inc.
CMC 4.5A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DSF-28-0008
ActiveSCHURTER Inc.
CMC 4.5A 2LN TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSF-28-0008 |
|---|---|
| DC Resistance (DCR) (Max) [Max] | 10 mOhm |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Size / Dimension [x] | 28.3 mm |
| Size / Dimension [x] | 1.114 in |
| Size / Dimension [y] | 1.079 " |
| Size / Dimension [y] | 27.4 mm |
| Voltage Rating - DC | 600 V |
DSF-28 Series
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Number of Lines | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) (Max) [Max] | Package / Case | Current Rating (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. | Through Hole | 125 °C | -40 °C | 600 V | 2 | 28.3 mm | 1.079 " | 1.114 in | 27.4 mm | 10 mOhm | Nonstandard | |
SCHURTER Inc. | Through Hole | 125 °C | -40 °C | 600 V | 2 | 28.3 mm | 1.079 " | 1.114 in | 27.4 mm | Nonstandard | ||
SCHURTER Inc. | Through Hole | 125 °C | -40 °C | 600 V | 2 | 28.3 mm | 1.079 " | 1.114 in | 27.4 mm | 125 mOhm | Nonstandard | 1.8 A |
SCHURTER Inc. | Through Hole | 125 °C | -40 °C | 600 V | 2 | 28.3 mm | 1.079 " | 1.114 in | 27.4 mm | 10 mOhm | Nonstandard | |
SCHURTER Inc. | Through Hole | 125 °C | -40 °C | 600 V | 2 | 28.3 mm | 1.079 " | 1.114 in | 27.4 mm | 1.9 Ohm | Nonstandard | 450 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.30 | |
| 50 | $ 6.17 | |||
| 100 | $ 5.28 | |||
| 500 | $ 4.60 | |||
| 1000 | $ 4.15 | |||
Description
General part information
DSF-28 Series
2 Line Common Mode Choke Through Hole 4.5A DCR 10mOhm
Documents
Technical documentation and resources
No documents available
