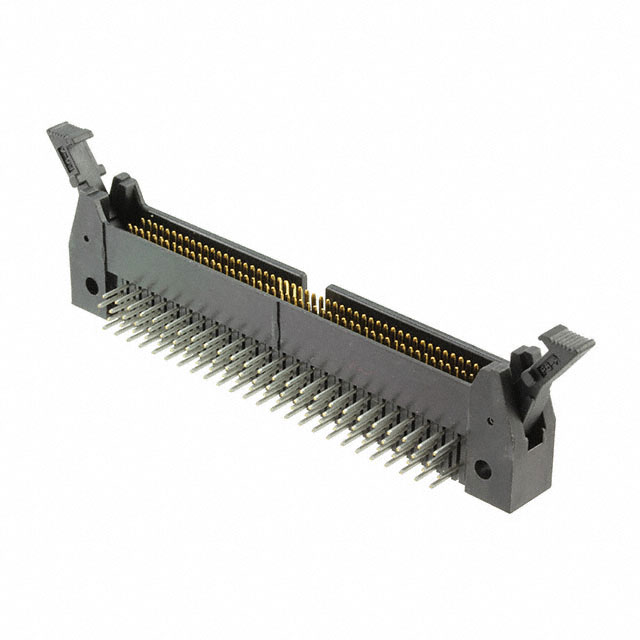

HIF6-100PA-1.27DS(71)

Active

Hirose Electric USA, Inc.

1.27MM PITCH TWO-PIECE CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF6-100PA-1.27DS(71)

Active

Hirose Electric USA, Inc.

1.27MM PITCH TWO-PIECE CONNECTORS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF6-100PA-1.27DS(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	0.217 in
Contact Length - Mating	5.5 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	0.5 A
Fastening Type	Latch Lock/Eject Hooks
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	100
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	300 VDC

HIF6 Series

Part	Color	Pitch [x]	Pitch [x]	Cable Termination	Number of Rows	Contact Finish	Features	Contact Type	Row Spacing [x]	Row Spacing	Mounting Type	Number of Positions	Wire Type	Connector Type	Wire Gauge	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post	Voltage Rating	Insulation Material	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Material	Shrouding	Fastening Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. HIF6-34D-1.27R	Black	0.05 in	1.27 mm	IDC	2	Gold	Feed Through Strain Relief	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	34	Ribbon Cable	Receptacle	28 AWG
Hirose Electric USA, Inc. HIF6-34PA-1.27DSA(71)					2			Male Pin			Through Hole	34		Header		2 çm	78.7 çin	Black	Solder	2.54 mm	0.1 in	Gold	0.11 in	2.79 mm	300 VDC	Polybutylene Terephthalate (PBT)	0.217 in	5.5 mm	0.5 A	Brass	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Board to Cable/Wire	0.203 Ám	8 Áin	All	0.05 in	1.27 mm	Tin	Square	85 °C	-55 °C	14.3 mm	0.563 "	UL94 V-0	0.606 in	15.39 mm
Hirose Electric USA, Inc. HIF6-34D-1.27R(20)	Black	0.05 in	1.27 mm	IDC	2	Gold	Feed Through Strain Relief	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	34	Ribbon Cable	Receptacle	28 AWG
Hirose Electric USA, Inc. HIF6-26PA-1.27DS(71)					2			Male Pin			Through Hole Right Angle	26		Header		2 çm	78.7 çin	Black	Solder	2.54 mm	0.1 in	Gold			300 VDC	Polybutylene Terephthalate (PBT)	0.217 in	5.5 mm	0.5 A	Brass	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Board to Cable/Wire	0.203 Ám	8 Áin	All	0.05 in	1.27 mm	Tin	Square	85 °C	-55 °C			UL94 V-0	0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF6-26D-1.27R(20)	Black	0.05 in	1.27 mm	IDC	2	Gold	Feed Through Strain Relief	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	26	Ribbon Cable	Receptacle	28 AWG
Hirose Electric USA, Inc. HIF6-40D-1.27R	Black	0.05 in	1.27 mm	IDC	2	Gold	Feed Through Strain Relief	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	40	Ribbon Cable	Receptacle	28 AWG
Hirose Electric USA, Inc. HIF6-52D-1.27R(20)	Black	0.05 in	1.27 mm	IDC	2	Gold	Feed Through Strain Relief	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	52	Ribbon Cable	Receptacle	28 AWG
Hirose Electric USA, Inc. HIF6-60D-1.27R(25)	Black	0.05 in	1.27 mm	IDC	2	Gold		Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	60	Ribbon Cable	Receptacle																																		0.76 Ám	30 Áin
Hirose Electric USA, Inc. HIF6-100PA-1.27DS(71)					2			Male Pin			Through Hole Right Angle	100		Header		2 çm	78.7 çin	Black	Solder	2.54 mm	0.1 in	Gold			300 VDC	Polybutylene Terephthalate (PBT)	0.217 in	5.5 mm	0.5 A	Brass	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Board to Cable/Wire	0.203 Ám	8 Áin	All	0.05 in	1.27 mm	Tin	Square	85 °C	-55 °C			UL94 V-0	0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF6-60PA-1.27DSA(75)					2			Male Pin			Through Hole	60		Header				Black	Solder	2.54 mm	0.1 in	Gold	0.11 in	2.79 mm	300 VDC	Polybutylene Terephthalate (PBT)	0.217 in	5.5 mm	0.5 A	Brass	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Board to Cable/Wire	0.76 Ám	30 Áin	All	0.05 in	1.27 mm		Square	85 °C	-55 °C	14.3 mm	0.563 "	UL94 V-0	0.606 in	15.39 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.93
		15	$ 5.36
		90	$ 4.69
		450	$ 4.35
Newark	Each	1	$ 8.54
		255	$ 7.52

Description

General part information

HIF6 Series

Connector Header Through Hole, Right Angle 100 position 0.050" (1.27mm)
