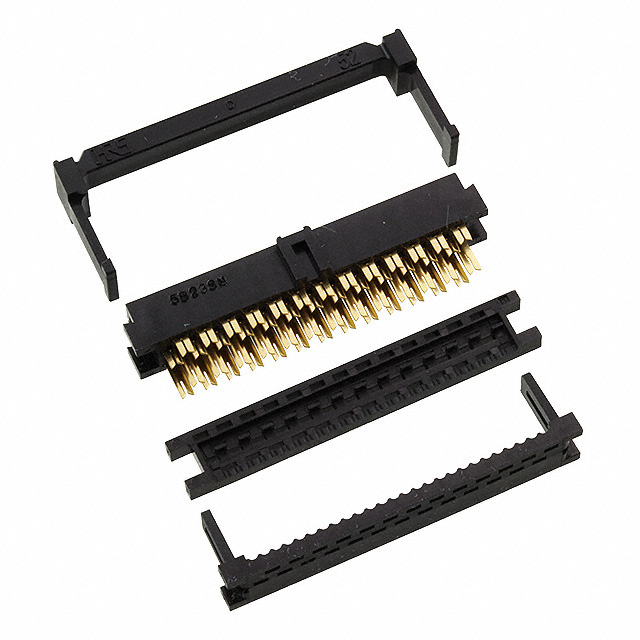

HIF6-52D-1.27R(20)

Active

Hirose Electric USA, Inc.

CONN RCPT 52POS IDC 28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HIF6-52D-1.27R(20) Spec

HIF6-52D-1.27R(20)

Active

Hirose Electric USA, Inc.

CONN RCPT 52POS IDC 28AWG GOLD

Deep-Dive with AI

DocumentsDatasheet HIF6-52D-1.27R(20) Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF6-52D-1.27R(20)

Cable Termination	IDC
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Type	Female Socket
Features	Feed Through, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	52
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	28 AWG
Wire Type	Ribbon Cable

HIF6 Series

Part	Color	Pitch [x]	Pitch [x]	Cable Termination	Number of Rows	Contact Finish	Features	Contact Type	Row Spacing [x]	Row Spacing	Mounting Type	Number of Positions	Wire Type	Connector Type	Wire Gauge	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post	Voltage Rating	Insulation Material	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Material	Shrouding	Fastening Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. HIF6-34D-1.27R	Black	0.05 in	1.27 mm	IDC	2	Gold	Feed Through Strain Relief	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	34	Ribbon Cable	Receptacle	28 AWG
Hirose Electric USA, Inc. HIF6-34PA-1.27DSA(71)					2			Male Pin			Through Hole	34		Header		2 çm	78.7 çin	Black	Solder	2.54 mm	0.1 in	Gold	0.11 in	2.79 mm	300 VDC	Polybutylene Terephthalate (PBT)	0.217 in	5.5 mm	0.5 A	Brass	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Board to Cable/Wire	0.203 Ám	8 Áin	All	0.05 in	1.27 mm	Tin	Square	85 °C	-55 °C	14.3 mm	0.563 "	UL94 V-0	0.606 in	15.39 mm
Hirose Electric USA, Inc. HIF6-34D-1.27R(20)	Black	0.05 in	1.27 mm	IDC	2	Gold	Feed Through Strain Relief	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	34	Ribbon Cable	Receptacle	28 AWG
Hirose Electric USA, Inc. HIF6-26PA-1.27DS(71)					2			Male Pin			Through Hole Right Angle	26		Header		2 çm	78.7 çin	Black	Solder	2.54 mm	0.1 in	Gold			300 VDC	Polybutylene Terephthalate (PBT)	0.217 in	5.5 mm	0.5 A	Brass	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Board to Cable/Wire	0.203 Ám	8 Áin	All	0.05 in	1.27 mm	Tin	Square	85 °C	-55 °C			UL94 V-0	0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF6-26D-1.27R(20)	Black	0.05 in	1.27 mm	IDC	2	Gold	Feed Through Strain Relief	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	26	Ribbon Cable	Receptacle	28 AWG
Hirose Electric USA, Inc. HIF6-40D-1.27R	Black	0.05 in	1.27 mm	IDC	2	Gold	Feed Through Strain Relief	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	40	Ribbon Cable	Receptacle	28 AWG
Hirose Electric USA, Inc. HIF6-52D-1.27R(20)	Black	0.05 in	1.27 mm	IDC	2	Gold	Feed Through Strain Relief	Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	52	Ribbon Cable	Receptacle	28 AWG
Hirose Electric USA, Inc. HIF6-60D-1.27R(25)	Black	0.05 in	1.27 mm	IDC	2	Gold		Female Socket	0.1 in	2.54 mm	Free Hanging (In-Line)	60	Ribbon Cable	Receptacle																																		0.76 Ám	30 Áin
Hirose Electric USA, Inc. HIF6-100PA-1.27DS(71)					2			Male Pin			Through Hole Right Angle	100		Header		2 çm	78.7 çin	Black	Solder	2.54 mm	0.1 in	Gold			300 VDC	Polybutylene Terephthalate (PBT)	0.217 in	5.5 mm	0.5 A	Brass	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Board to Cable/Wire	0.203 Ám	8 Áin	All	0.05 in	1.27 mm	Tin	Square	85 °C	-55 °C			UL94 V-0	0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF6-60PA-1.27DSA(75)					2			Male Pin			Through Hole	60		Header				Black	Solder	2.54 mm	0.1 in	Gold	0.11 in	2.79 mm	300 VDC	Polybutylene Terephthalate (PBT)	0.217 in	5.5 mm	0.5 A	Brass	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Board to Cable/Wire	0.76 Ám	30 Áin	All	0.05 in	1.27 mm		Square	85 °C	-55 °C	14.3 mm	0.563 "	UL94 V-0	0.606 in	15.39 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.59
		10	$ 5.05
		25	$ 4.55
		40	$ 4.32
		80	$ 4.01
		230	$ 3.59
		440	$ 3.36
		945	$ 3.11
		2400	$ 2.85

Description

General part information

HIF6 Series

52 Position Rectangular Receptacle Connector IDC Gold 28 AWG

Documents

Technical documentation and resources

Datasheet

HIF6-52D-1.27R(20) Spec

Datasheet
