09400489811

Active

HARTING Technology Group

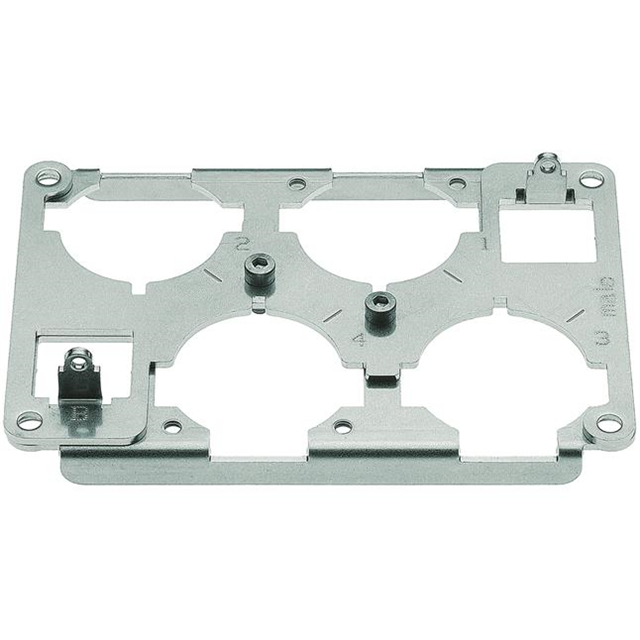

HAN 48 HPR FRAME FOR 4X650A MALE ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 48 HPR FRAME FOR 4X650A MALE ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Size	Material	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Frame Type	Includes	Number of Modules	Includes	Ratings	For Use With/Related Products	Accessory Type
HARTING Technology Group 09400489912	16HPR	Metal	Female Male	125 °C	-40 °C	Fixed Frame	10 pcs - 2 pc Frame 4 Screws 4 Washers
HARTING Technology Group 09400489910	48HPR	Metal	Female	125 °C	-40 °C	Fixed Frame	3 pc Frame 4 Washers 8 Screws	6
HARTING Technology Group 09400489810	48HPR	Metal	Male	125 °C	-40 °C	Fixed Frame	3 pc Frame 4 Washers 8 Screws	6
HARTING Technology Group 09400489906	48HPR	Metal	Female	125 °C	-40 °C	Fixed Frame		6	2 pc 4 8 12
HARTING Technology Group 09400489909	48HPR	Metal	Female	125 °C	-40 °C	Fixed Frame	3 pc Frame 8 Screws 8 Washers
HARTING Technology Group 09400489811	48HPR	Metal	Male	125 °C	-40 °C	Fixed Frame	2 pc Frame 6 Screws 6 Washers	6
HARTING Technology Group 09400489803										IP65	Han® 48B Housings	Cover

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Module Male Heavy Duty Fixed Frame Size 48HPR
