09400489912
ActiveHARTING Technology Group

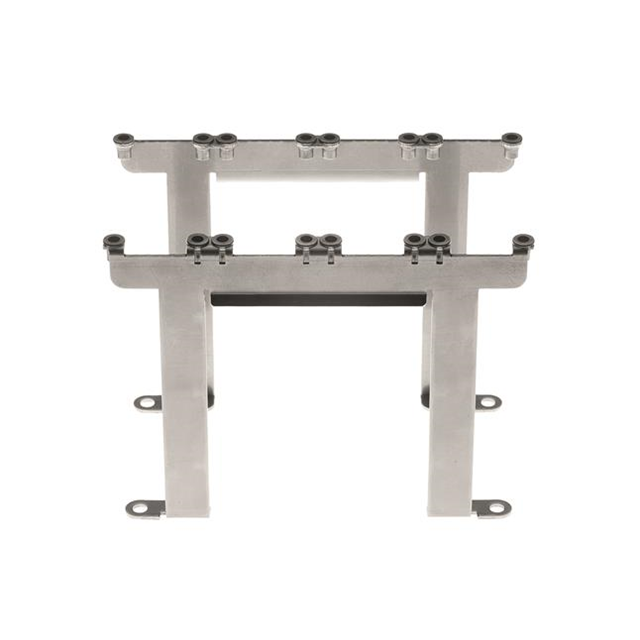

FRAME FIXED MALE SZ16B FOR 4MOD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09400489912
ActiveHARTING Technology Group
FRAME FIXED MALE SZ16B FOR 4MOD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09400489912 |
|---|---|
| Frame Type | Fixed Frame |
| Gender | Male, Female |
| Includes | 10 pcs - 2 pc Frame, 4 Screws, 4 Washers |
| Material | Metal |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16HPR |
09400489 Series
| Part | Size | Material | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Frame Type | Includes | Number of Modules | Includes | Ratings | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | 16HPR | Metal | Female Male | 125 °C | -40 °C | Fixed Frame | 10 pcs - 2 pc Frame 4 Screws 4 Washers | |||||
HARTING Technology Group | 48HPR | Metal | Female | 125 °C | -40 °C | Fixed Frame | 3 pc Frame 4 Washers 8 Screws | 6 | ||||
HARTING Technology Group | 48HPR | Metal | Male | 125 °C | -40 °C | Fixed Frame | 3 pc Frame 4 Washers 8 Screws | 6 | ||||
HARTING Technology Group | 48HPR | Metal | Female | 125 °C | -40 °C | Fixed Frame | 6 | 2 pc 4 8 12 | ||||
HARTING Technology Group | 48HPR | Metal | Female | 125 °C | -40 °C | Fixed Frame | 3 pc Frame 8 Screws 8 Washers | |||||
HARTING Technology Group | 48HPR | Metal | Male | 125 °C | -40 °C | Fixed Frame | 2 pc Frame 6 Screws 6 Washers | 6 | ||||
HARTING Technology Group | IP65 | Han® 48B Housings | Cover |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09400489 Series
4 Module Female/Male Heavy Duty Fixed Frame Size 16HPR
