192116

Active

Amphenol RF

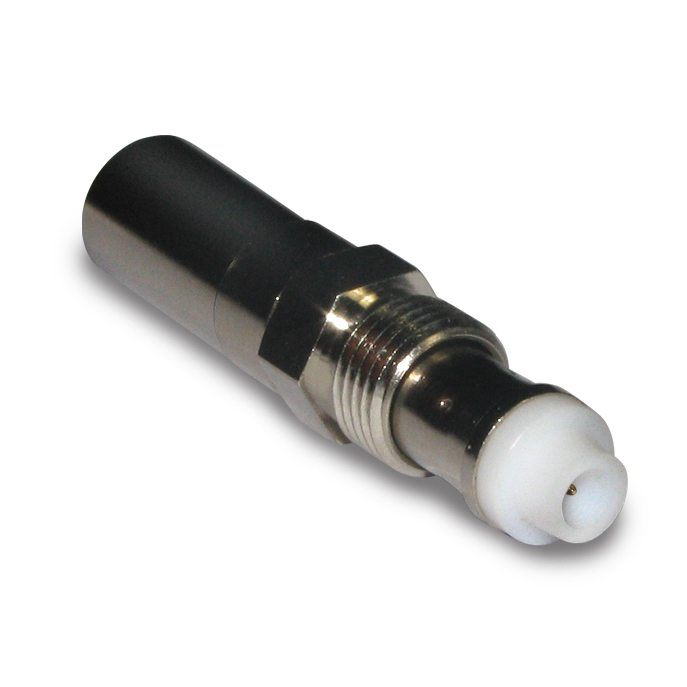

FME STRAIGHT CRIMP JACK FOR RG-8

Deep-Dive with AI

Search across all available documentation for this part.

192116

Active

Amphenol RF

FME STRAIGHT CRIMP JACK FOR RG-8

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	192116

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 9258, LMR-240
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	FME
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

1921 Series

Part	Body Finish	Dielectric Material	Mating Cycles	Mounting Type	Connector Type	Includes	Center Contact Material	Number of Ports	Contact Termination	Shield Termination	Connector Style	Housing Color	Center Contact Plating	Frequency - Max [Max]	Body Material	Features	Impedance	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Adapter Type	Adapter Series	Style	Convert From (Adapter End)	Fastening Type	Conversion Type	Center Gender
Amphenol RF 192111	Nickel	Polyoxymethylene (POM) Acetal	500	Free Hanging (In-Line)	Female Socket Jack	1 Connector 1 Contact 1 Ferrule 1 Nut 1 Sleeve	Phosphor Bronze	1	Solder	Crimp	FME	Silver	Gold	200 MHz	Brass	Rotating Nipple	50 Ohms	188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 192114	Nickel	Polytetrafluoroethylene (PTFE)	500	Free Hanging (In-Line)	Male Pin Plug	1 Connector 1 Contact 1 Ferrule	Brass	1	Solder	Crimp	FME	Silver	Gold	200 MHz	Brass		50 Ohms	188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 192116	Nickel	Polytetrafluoroethylene (PTFE)	500	Free Hanging (In-Line)	Female Socket Jack		Phosphor Bronze	1	Crimp	Crimp	FME	Silver	Gold	1 GHz	Brass		50 Ohms	Belden 9258 LMR-240	-65 ░C	165 °C
Amphenol RF 192104	Nickel	Polyoxymethylene (POM)		Free Hanging (In-Line)			Brass						Gold	1 GHz	Brass		50 Ohms		-40 °C	85 °C	BNC Plug Male Pin	Plug to Plug	BNC to FME	Straight	FME Plug Male Pin	Bayonet Lock Threaded	Between Series	Male to Male
Amphenol RF 192103	Gold	Polyoxymethylene (POM) Acetal		Free Hanging (In-Line)			Brass						Gold	1 GHz	Brass		50 Ohms		-65 ░C	165 °C	FME Plug Male Pin	Plug to Plug	FME to FME	Straight	FME Plug Male Pin		Same Series	Male to Male
Amphenol RF 192113	Nickel	Polytetrafluoroethylene (PTFE)		Free Hanging (In-Line)			Brass						Gold	1 GHz	Brass		50 Ohms		-65 ░C	165 °C	FME Plug Male Pin	Plug to Plug	SMA to FME	Straight	SMA Plug Male Pin		Between Series	Male to Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.78
		10	$ 12.22
		25	$ 11.75
		50	$ 11.28
		100	$ 10.65
		250	$ 9.71
		500	$ 9.08
		1000	$ 8.33

Description

General part information

1921 Series

FME Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
