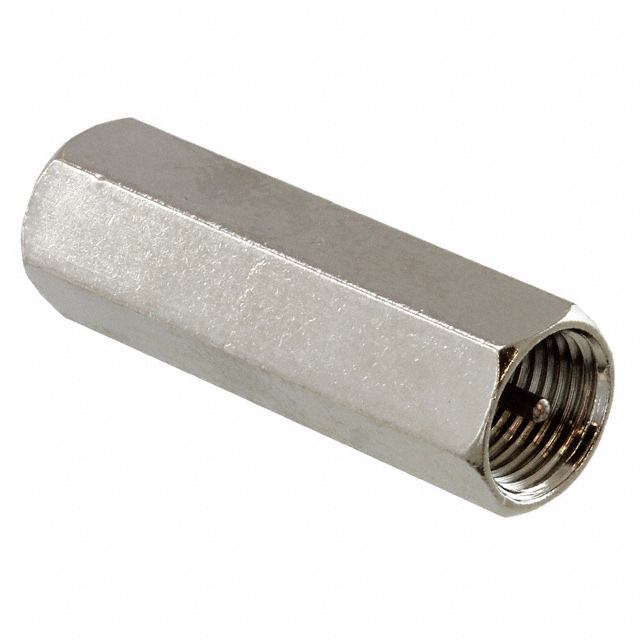

192103
ActiveAmphenol RF
CONN ADAPT PLUG-PLUG FME 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
192103
ActiveAmphenol RF
CONN ADAPT PLUG-PLUG FME 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 192103 |
|---|---|
| Adapter Series | FME to FME |
| Adapter Type | Plug to Plug |
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | FME Plug, Male Pin |
| Convert To (Adapter End) | Male Pin, FME Plug |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Frequency - Max [Max] | 1 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
1921 Series
| Part | Body Finish | Dielectric Material | Mating Cycles | Mounting Type | Connector Type | Includes | Center Contact Material | Number of Ports | Contact Termination | Shield Termination | Connector Style | Housing Color | Center Contact Plating | Frequency - Max [Max] | Body Material | Features | Impedance | Cable Group | Operating Temperature [Min] | Operating Temperature [Max] | Convert To (Adapter End) | Adapter Type | Adapter Series | Style | Convert From (Adapter End) | Fastening Type | Conversion Type | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Nickel | Polyoxymethylene (POM) Acetal | 500 | Free Hanging (In-Line) | Female Socket Jack | 1 Connector 1 Contact 1 Ferrule 1 Nut 1 Sleeve | Phosphor Bronze | 1 | Solder | Crimp | FME | Silver | Gold | 200 MHz | Brass | Rotating Nipple | 50 Ohms | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | ||||||||||
Amphenol RF | Nickel | Polytetrafluoroethylene (PTFE) | 500 | Free Hanging (In-Line) | Male Pin Plug | 1 Connector 1 Contact 1 Ferrule | Brass | 1 | Solder | Crimp | FME | Silver | Gold | 200 MHz | Brass | 50 Ohms | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | |||||||||||
Amphenol RF | Nickel | Polytetrafluoroethylene (PTFE) | 500 | Free Hanging (In-Line) | Female Socket Jack | Phosphor Bronze | 1 | Crimp | Crimp | FME | Silver | Gold | 1 GHz | Brass | 50 Ohms | Belden 9258 LMR-240 | -65 ░C | 165 °C | ||||||||||
Amphenol RF | Nickel | Polyoxymethylene (POM) | Free Hanging (In-Line) | Brass | Gold | 1 GHz | Brass | 50 Ohms | -40 °C | 85 °C | BNC Plug Male Pin | Plug to Plug | BNC to FME | Straight | FME Plug Male Pin | Bayonet Lock Threaded | Between Series | Male to Male | ||||||||||
Amphenol RF | Gold | Polyoxymethylene (POM) Acetal | Free Hanging (In-Line) | Brass | Gold | 1 GHz | Brass | 50 Ohms | -65 ░C | 165 °C | FME Plug Male Pin | Plug to Plug | FME to FME | Straight | FME Plug Male Pin | Same Series | Male to Male | |||||||||||
Amphenol RF | Nickel | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Brass | Gold | 1 GHz | Brass | 50 Ohms | -65 ░C | 165 °C | FME Plug Male Pin | Plug to Plug | SMA to FME | Straight | SMA Plug Male Pin | Between Series | Male to Male |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 14.56 | |
Description
General part information
1921 Series
Adapter Coaxial Connector FME Plug, Male Pin To FME Plug, Male Pin 50 Ohms
