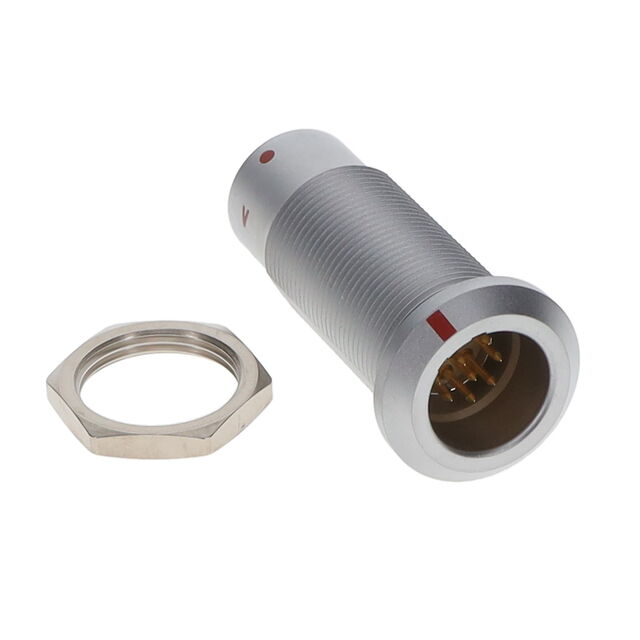

SJG.2B.310.CLAPV
ActiveLEMO
CONN ADAPTER 10P-10P F-M PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SJG.2B.310.CLAPV |
|---|---|
| Connector Style | Standard |
| Convert From (Adapter End) | Female Sockets |
| Convert To (Adapter End) | Male Pins |
| Current Rating (Amps) | 8 A |
| Fastening Type | Push-Pull |
| Features | Mounting Hardware, Vacuumtight |
| Housing Color | Silver |
| Housing Finish | Chrome |
| Housing Material | Brass |
| Includes | 1 Adapter, 1 Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions (Convert To) | 10 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Orientation (Convert From) | J |
| Orientation (Convert To) | G |
| Shell Size - Insert (Convert From) | 310 |
| Shell Size - Insert (Convert To) [custom] | 310 |
| Shielding | Shielded |
SJG.2B Series
| Part | Orientation (Convert To) | Shell Size - Insert (Convert To) [custom] | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Connector Style | Ingress Protection | Convert To (Adapter End) | Current Rating (Amps) | Number of Positions (Convert From) | Number of Positions (Convert To) | Mounting Feature | Housing Color | Shielding | Housing Finish | Orientation (Convert From) | Housing Material | Convert From (Adapter End) | Features | Shell Size - Insert (Convert From) | Shell Size - Insert (Convert To) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | G | 316 | Push-Pull | -20 C | 80 C | 1 Adapter 1 Nut | Standard | IP68 - Dust Tight Waterproof | Male Pins | 6 A | 16 | 16 | Bulkhead - Rear Side Nut | Silver | Shielded | Chrome | J | Brass | Female Sockets | Mounting Hardware Vacuumtight | 316 | |
LEMO | G | Push-Pull | -20 C | 80 C | 1 Adapter 1 Nut | Standard | IP68 - Dust Tight Waterproof | Male Pins | 14 A | 5 | 5 | Bulkhead - Rear Side Nut | Silver | Shielded | Chrome | J | Brass | Female Sockets | Mounting Hardware Vacuumtight | 305 | ||
LEMO | G | Push-Pull | -20 C | 80 C | 1 Adapter 1 Nut | Standard | IP68 - Dust Tight Waterproof | Male Pins | 6.5 A | 14 | 14 | Bulkhead - Rear Side Nut | Silver | Shielded | Chrome | J | Brass | Female Sockets | Mounting Hardware Vacuumtight | 314 | 314 | |
LEMO | G | 310 | Push-Pull | -20 C | 80 C | 1 Adapter 1 Nut | Standard | IP68 - Dust Tight Waterproof | Male Pins | 8 A | 10 | Bulkhead - Rear Side Nut | Silver | Shielded | Chrome | J | Brass | Female Sockets | Mounting Hardware Vacuumtight | 310 | ||
LEMO | G | 308 | Push-Pull | -20 C | 80 C | 1 Adapter 1 Nut | Standard | IP68 - Dust Tight Waterproof | Male Pins | 10 A | 8 | 8 | Bulkhead - Rear Side Nut | Silver | Shielded | Chrome | J | Brass | Female Sockets | Mounting Hardware Vacuumtight | 308 | |
LEMO | G | Push-Pull | -20 C | 80 C | 1 Adapter 1 Nut | Standard | IP68 - Dust Tight Waterproof | Male Pins | 7 A | 12 | 12 | Bulkhead - Rear Side Nut | Silver | Shielded | Chrome | J | Brass | Female Sockets | Mounting Hardware Vacuumtight | 312 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 132.38 | |
| 10 | $ 121.48 | |||
| 25 | $ 116.81 | |||
| 50 | $ 112.91 | |||
Description
General part information
SJG.2B Series
Circular Connector Standard 10/10 Female Sockets/Male Pins Panel Mount
