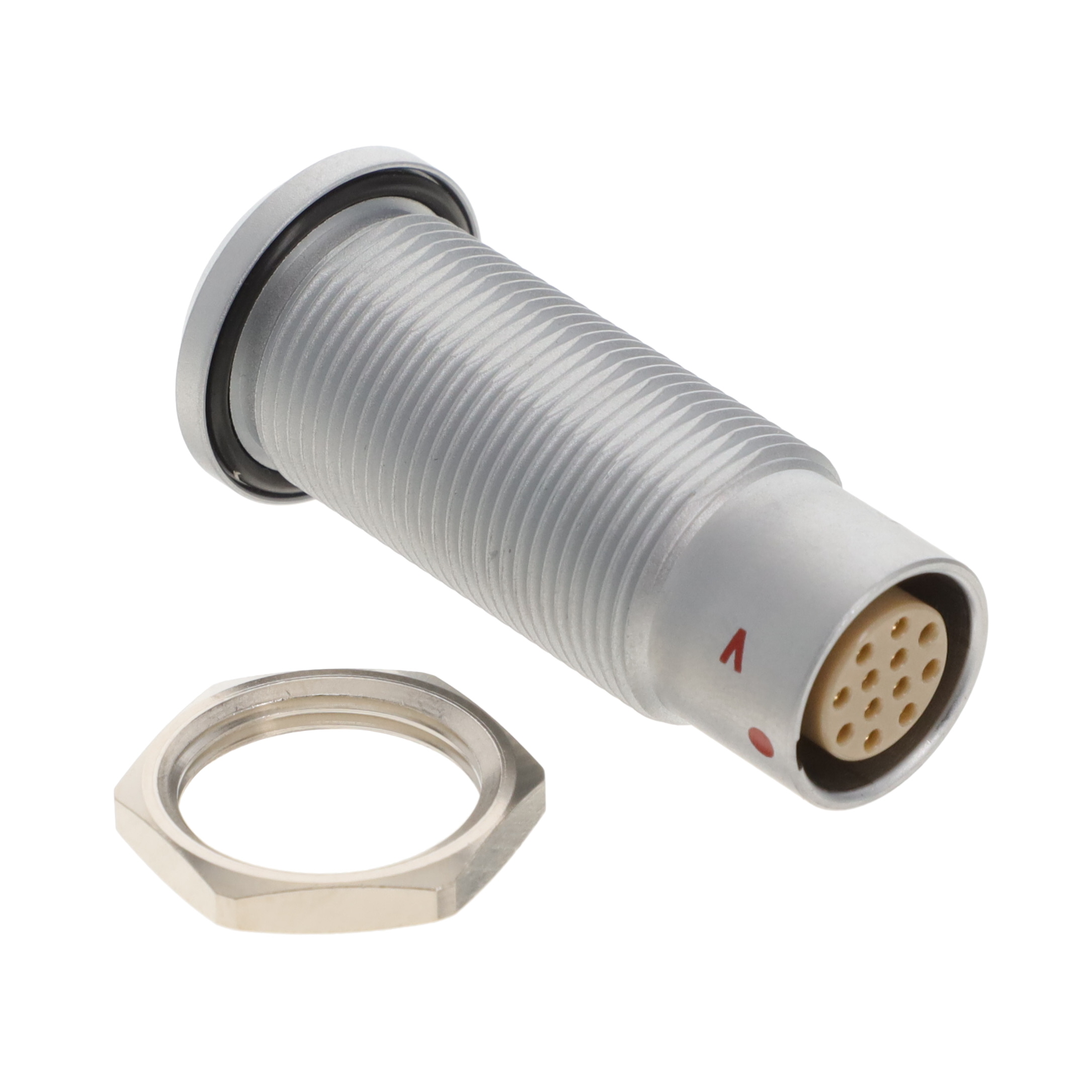

SJG.2B.312.CLAPV

Active

LEMO

CONN ADAPTER 12P-12P F-M PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SJG.2B.312.CLAPV

Active

LEMO

CONN ADAPTER 12P-12P F-M PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJG.2B.312.CLAPV

Connector Style	Standard
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Male Pins
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Features	Mounting Hardware, Vacuumtight
Housing Color	Silver
Housing Finish	Chrome
Housing Material	Brass
Includes	1 Adapter, 1 Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions (Convert From)	12
Number of Positions (Convert To)	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Orientation (Convert From)	J
Orientation (Convert To)	G
Shell Size - Insert (Convert From)	312
Shielding	Shielded

SJG.2B Series

Part	Orientation (Convert To)	Shell Size - Insert (Convert To) [custom]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Connector Style	Ingress Protection	Convert To (Adapter End)	Current Rating (Amps)	Number of Positions (Convert From)	Number of Positions (Convert To)	Mounting Feature	Housing Color	Shielding	Housing Finish	Orientation (Convert From)	Housing Material	Convert From (Adapter End)	Features	Shell Size - Insert (Convert From)	Shell Size - Insert (Convert To) [custom]
LEMO SJG.2B.316.CLAPV	G	316	Push-Pull	-20 C	80 C	1 Adapter 1 Nut	Standard	IP68 - Dust Tight Waterproof	Male Pins	6 A	16	16	Bulkhead - Rear Side Nut	Silver	Shielded	Chrome	J	Brass	Female Sockets	Mounting Hardware Vacuumtight	316
LEMO SJG.2B.305.CLAPV	G		Push-Pull	-20 C	80 C	1 Adapter 1 Nut	Standard	IP68 - Dust Tight Waterproof	Male Pins	14 A	5	5	Bulkhead - Rear Side Nut	Silver	Shielded	Chrome	J	Brass	Female Sockets	Mounting Hardware Vacuumtight	305
LEMO SJG.2B.314.CLAPV	G		Push-Pull	-20 C	80 C	1 Adapter 1 Nut	Standard	IP68 - Dust Tight Waterproof	Male Pins	6.5 A	14	14	Bulkhead - Rear Side Nut	Silver	Shielded	Chrome	J	Brass	Female Sockets	Mounting Hardware Vacuumtight	314	314
LEMO SJG.2B.310.CLAPV	G	310	Push-Pull	-20 C	80 C	1 Adapter 1 Nut	Standard	IP68 - Dust Tight Waterproof	Male Pins	8 A		10	Bulkhead - Rear Side Nut	Silver	Shielded	Chrome	J	Brass	Female Sockets	Mounting Hardware Vacuumtight	310
LEMO SJG.2B.308.CLAPV	G	308	Push-Pull	-20 C	80 C	1 Adapter 1 Nut	Standard	IP68 - Dust Tight Waterproof	Male Pins	10 A	8	8	Bulkhead - Rear Side Nut	Silver	Shielded	Chrome	J	Brass	Female Sockets	Mounting Hardware Vacuumtight	308
LEMO SJG.2B.312.CLAPV	G		Push-Pull	-20 C	80 C	1 Adapter 1 Nut	Standard	IP68 - Dust Tight Waterproof	Male Pins	7 A	12	12	Bulkhead - Rear Side Nut	Silver	Shielded	Chrome	J	Brass	Female Sockets	Mounting Hardware Vacuumtight	312

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 102.44

Description

General part information

SJG.2B Series

Circular Connector Standard 12/12 Female Sockets/Male Pins Panel Mount
