DF52-20S-0.8H(21)

Active

Hirose Electric USA, Inc.

CONN SOCKET 20P 0.031 TIN SMD RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF52-20S-0.8H(21)

Active

Hirose Electric USA, Inc.

CONN SOCKET 20P 0.031 TIN SMD RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF52-20S-0.8H(21)

Connector Type	Socket
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Type	Non-Gendered
Current Rating (Amps)	1.5 A
Fastening Type	Detent Lock
Features	Glow Wire Compliant, Solder Retention
Insulation Color	Black
Insulation Height	0.069 in
Insulation Height	1.75 mm
Insulation Material	Halogen Free, Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

DF52 Series

Part	Number of Rows	Contact Termination	Pitch [x]	Pitch [x]	Fastening Type	Connector Type	Mounting Type	Contact Type	Insulation Material	Number of Positions	Note	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Wire Gauge	Number of Conductors	Length	Length	Contact End	Termination	Voltage Rating	Number of Positions Loaded	Contact Material	Material Flammability Rating	Current Rating (Amps)	Style	Insulation Color	Features	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height
Hirose Electric USA, Inc. DF52-15P-0.8C	1	Crimp	0.8 mm	0.031 in	Friction Lock	Plug	Free Hanging (In-Line)	Non-Gendered	Nylon Polyamide (PA)	15	Contacts Not Included	85 °C	-40 °C	Black
Hirose Electric USA, Inc. DF52-16P-0.8C	1	Crimp	0.8 mm	0.031 in	Friction Lock	Plug	Free Hanging (In-Line)	Non-Gendered	Nylon Polyamide (PA)		Contacts Not Included	85 °C	-40 °C	Black	16
Hirose Electric USA, Inc. DF52-3S-0.8H(51)
Hirose Electric USA, Inc. DF52-2832PF1571-28A9-300	1													White		39.4 Áin	1 Ám	Tin	28 AWG	1	300 mm	11.8 in	Non-Gendered
Hirose Electric USA, Inc. DF52-6S-0.8H(21)	1				Detent Lock	Socket	Surface Mount Right Angle	Non-Gendered	Halogen Free Nylon Polyamide (PA)	6		85 °C	-40 °C											Solder	100 V	All	Copper Alloy	UL94 V-0	1.5 A	Board to Cable/Wire	Black	Glow Wire Compliant Solder Retention	Tin	0.031 in	0.8 mm	0.069 in	1.75 mm
Hirose Electric USA, Inc. DF52-5S-0.8H(51)
Hirose Electric USA, Inc. DF52-16S-0.8H(21)	1				Detent Lock	Socket	Surface Mount Right Angle	Non-Gendered	Halogen Free Nylon Polyamide (PA)			85 °C	-40 °C		16									Solder	100 V	All	Copper Alloy	UL94 V-0	1.5 A	Board to Cable/Wire	Black	Glow Wire Compliant Solder Retention	Tin	0.031 in	0.8 mm	0.069 in	1.75 mm
Hirose Electric USA, Inc. DF52-20S-0.8H(21)	1				Detent Lock	Socket	Surface Mount Right Angle	Non-Gendered	Halogen Free Nylon Polyamide (PA)	20		85 °C	-40 °C											Solder	100 V	All	Copper Alloy	UL94 V-0	1.5 A	Board to Cable/Wire	Black	Glow Wire Compliant Solder Retention	Tin	0.031 in	0.8 mm	0.069 in	1.75 mm
Hirose Electric USA, Inc. DF52-8S-0.8H(21)	1				Detent Lock	Socket	Surface Mount Right Angle	Non-Gendered	Halogen Free Nylon Polyamide (PA)	8		85 °C	-40 °C											Solder	100 V	All	Copper Alloy	UL94 V-0	1.5 A	Board to Cable/Wire	Black	Glow Wire Compliant Solder Retention	Tin	0.031 in	0.8 mm	0.069 in	1.75 mm
Hirose Electric USA, Inc. DF52-20P-0.8C	1	Crimp	0.8 mm	0.031 in	Friction Lock	Plug	Free Hanging (In-Line)	Non-Gendered	Nylon Polyamide (PA)	20	Contacts Not Included	85 °C	-40 °C	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.05
		10	$ 0.90
		25	$ 0.84
		50	$ 0.80
		100	$ 0.76
		250	$ 0.71
		500	$ 0.68
		1000	$ 0.65
		2500	$ 0.61
	Digi-Reel®	1	$ 1.05
		10	$ 0.86
		25	$ 0.79
		50	$ 0.74
		100	$ 0.70
		250	$ 0.64
		500	$ 0.61
		1000	$ 0.57
		2500	$ 0.53
	Tape & Reel (TR)	5000	$ 0.50

Description

General part information

DF52 Series

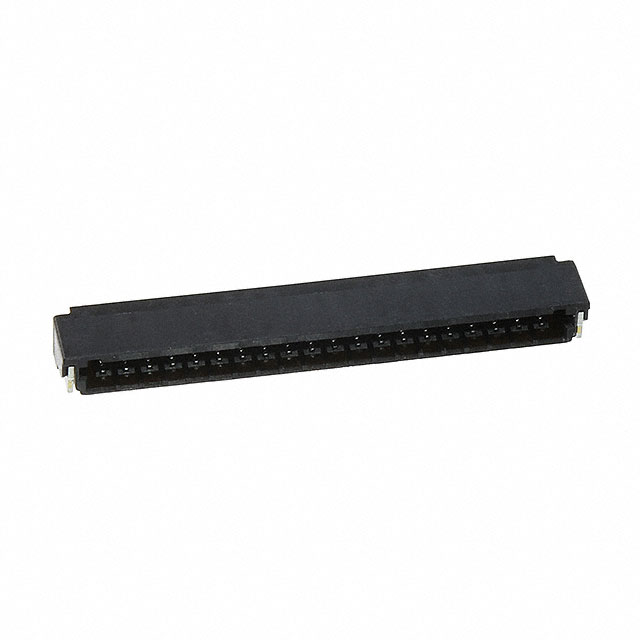

20 Position Socket Connector 0.031" (0.80mm) Surface Mount, Right Angle Tin
