DF52-2832PF1571-28A9-300

Active

Hirose Electric USA, Inc.

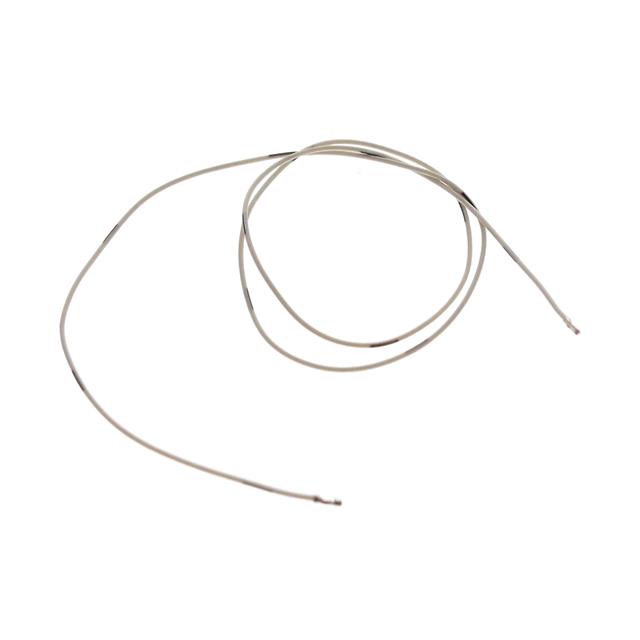

JUMPER DF52-2832PCF X2 300MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF52-2832PF1571-28A9-300

Active

Hirose Electric USA, Inc.

JUMPER DF52-2832PCF X2 300MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF52-2832PF1571-28A9-300

Color	White
Contact End	Non-Gendered
Contact Finish	Tin
Contact Finish Thickness	39.4 Áin
Contact Finish Thickness	1 Ám
Length	300 mm
Length	11.8 in
Number of Conductors	1
Number of Rows	1
Wire Gauge	28 AWG

DF52 Series

Part	Number of Rows	Contact Termination	Pitch [x]	Pitch [x]	Fastening Type	Connector Type	Mounting Type	Contact Type	Insulation Material	Number of Positions	Note	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Wire Gauge	Number of Conductors	Length	Length	Contact End	Termination	Voltage Rating	Number of Positions Loaded	Contact Material	Material Flammability Rating	Current Rating (Amps)	Style	Insulation Color	Features	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height
Hirose Electric USA, Inc. DF52-15P-0.8C	1	Crimp	0.8 mm	0.031 in	Friction Lock	Plug	Free Hanging (In-Line)	Non-Gendered	Nylon Polyamide (PA)	15	Contacts Not Included	85 °C	-40 °C	Black
Hirose Electric USA, Inc. DF52-16P-0.8C	1	Crimp	0.8 mm	0.031 in	Friction Lock	Plug	Free Hanging (In-Line)	Non-Gendered	Nylon Polyamide (PA)		Contacts Not Included	85 °C	-40 °C	Black	16
Hirose Electric USA, Inc. DF52-3S-0.8H(51)
Hirose Electric USA, Inc. DF52-2832PF1571-28A9-300	1													White		39.4 Áin	1 Ám	Tin	28 AWG	1	300 mm	11.8 in	Non-Gendered
Hirose Electric USA, Inc. DF52-6S-0.8H(21)	1				Detent Lock	Socket	Surface Mount Right Angle	Non-Gendered	Halogen Free Nylon Polyamide (PA)	6		85 °C	-40 °C											Solder	100 V	All	Copper Alloy	UL94 V-0	1.5 A	Board to Cable/Wire	Black	Glow Wire Compliant Solder Retention	Tin	0.031 in	0.8 mm	0.069 in	1.75 mm
Hirose Electric USA, Inc. DF52-5S-0.8H(51)
Hirose Electric USA, Inc. DF52-16S-0.8H(21)	1				Detent Lock	Socket	Surface Mount Right Angle	Non-Gendered	Halogen Free Nylon Polyamide (PA)			85 °C	-40 °C		16									Solder	100 V	All	Copper Alloy	UL94 V-0	1.5 A	Board to Cable/Wire	Black	Glow Wire Compliant Solder Retention	Tin	0.031 in	0.8 mm	0.069 in	1.75 mm
Hirose Electric USA, Inc. DF52-20S-0.8H(21)	1				Detent Lock	Socket	Surface Mount Right Angle	Non-Gendered	Halogen Free Nylon Polyamide (PA)	20		85 °C	-40 °C											Solder	100 V	All	Copper Alloy	UL94 V-0	1.5 A	Board to Cable/Wire	Black	Glow Wire Compliant Solder Retention	Tin	0.031 in	0.8 mm	0.069 in	1.75 mm
Hirose Electric USA, Inc. DF52-8S-0.8H(21)	1				Detent Lock	Socket	Surface Mount Right Angle	Non-Gendered	Halogen Free Nylon Polyamide (PA)	8		85 °C	-40 °C											Solder	100 V	All	Copper Alloy	UL94 V-0	1.5 A	Board to Cable/Wire	Black	Glow Wire Compliant Solder Retention	Tin	0.031 in	0.8 mm	0.069 in	1.75 mm
Hirose Electric USA, Inc. DF52-20P-0.8C	1	Crimp	0.8 mm	0.031 in	Friction Lock	Plug	Free Hanging (In-Line)	Non-Gendered	Nylon Polyamide (PA)	20	Contacts Not Included	85 °C	-40 °C	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.06
		10	$ 0.81
		25	$ 0.73
		50	$ 0.67
		100	$ 0.62
		250	$ 0.56
		500	$ 0.52
		1000	$ 0.48
		2500	$ 0.44

Description

General part information

DF52 Series

White 28 AWG Jumper Lead Non-Gendered Tin 11.8" (300.0mm)
