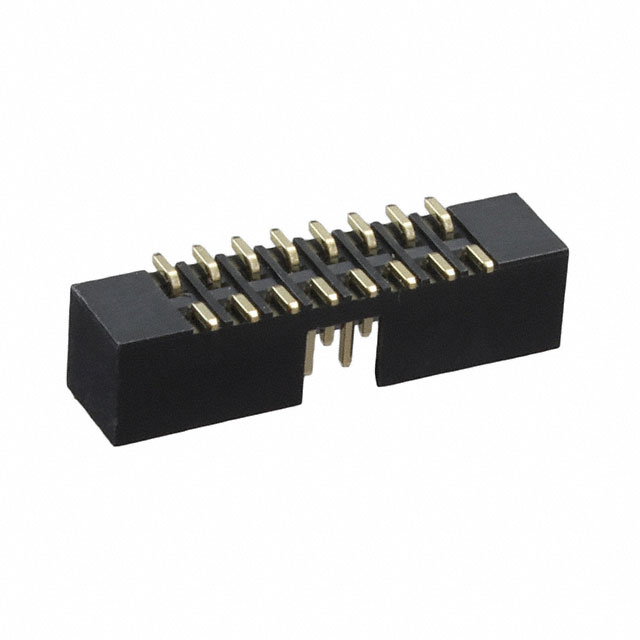

2BHR-16-VUA-SMT
ActiveAdam Tech
CONN HEADER SMD 16POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
2BHR-16-VUA-SMT
ActiveAdam Tech
CONN HEADER SMD 16POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2BHR-16-VUA-SMT |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 6.05 mm |
| Insulation Height | 0.238 in |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
2BHR Series
| Part | Mounting Type | Contact Shape | Contact Material | Termination | Contact Finish Thickness - Mating | Voltage Rating | Contact Length - Post [x] | Contact Length - Post | Insulation Material | Contact Finish - Post | Contact Finish - Mating | Insulation Height | Insulation Height | Contact Type | Shrouding | Number of Positions Loaded | Number of Positions | Connector Type | Style | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Fastening Type | Pitch - Mating [x] | Pitch - Mating [x] | Contact Finish Thickness - Post | Features | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Through Hole | Square | Brass | Solder | Flash | 250 VAC | 0.11 in | 2.79 mm | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Gold | 5.6 mm | 0.22 in | Male Pin | Shrouded - 4 Wall | All | 40 | Header | Board to Cable/Wire | Black | -40 °C | 105 ░C | 2 | Push-Pull | 0.079 in | 2 mm | Flash | Keying Slot | 0.079 in | 2 mm | UL94 V-0 | |
Adam Tech | Through Hole | Square | Brass | Solder | Flash | 250 VAC | 0.11 in | 2.79 mm | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Gold | 5.6 mm | 0.22 in | Male Pin | Shrouded - 4 Wall | All | Header | Board to Cable/Wire | Black | -40 °C | 105 ░C | 2 | Push-Pull | 0.079 in | 2 mm | Flash | Keying Slot | 0.079 in | 2 mm | UL94 V-0 | 16 | |
Adam Tech | Surface Mount | Square | Brass | Solder | Flash | 250 VAC | Nylon 6T Polyamide (PA6T) | Gold | Gold | 6.05 mm | 0.238 in | Male Pin | Shrouded - 4 Wall | All | 8 | Header | Board to Cable/Wire | Black | -40 °C | 105 ░C | 2 | Push-Pull | 0.079 in | 2 mm | Flash | Keying Slot | 0.079 in | 2 mm | UL94 V-0 | |||
Adam Tech | Through Hole Right Angle | Square | Brass | Solder | Flash | 250 VAC | 0.11 in | 2.79 mm | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Gold | 5.6 mm | 0.22 in | Male Pin | Shrouded - 4 Wall | All | 10 | Header | Board to Cable/Wire | Black | -55 °C | 105 ░C | 2 | Push-Pull | 0.079 in | 2 mm | Flash | Keying Slot | 0.079 in | 2 mm | UL94 V-0 | |
Adam Tech | Surface Mount | Square | Brass | Solder | Flash | 250 VAC | Nylon 6T Polyamide (PA6T) | Gold | Gold | 6.05 mm | 0.238 in | Male Pin | Shrouded - 4 Wall | All | 24 | Header | Board to Cable/Wire | Black | -40 °C | 105 ░C | 2 | Push-Pull | 0.079 in | 2 mm | Flash | Keying Slot | 0.079 in | 2 mm | UL94 V-0 | |||
Adam Tech | Through Hole Right Angle | Square | Brass | Solder | Flash | 250 VAC | 0.11 in | 2.79 mm | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Gold | 5.6 mm | 0.22 in | Male Pin | Shrouded - 4 Wall | All | 34 | Header | Board to Cable/Wire | Black | -55 °C | 105 ░C | 2 | Push-Pull | 0.079 in | 2 mm | Flash | Keying Slot | 0.079 in | 2 mm | UL94 V-0 | |
Adam Tech | Through Hole Right Angle | Square | Brass | Solder | Flash | 250 VAC | 0.11 in | 2.79 mm | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Gold | 5.6 mm | 0.22 in | Male Pin | Shrouded - 4 Wall | All | 24 | Header | Board to Cable/Wire | Black | -55 °C | 105 ░C | 2 | Push-Pull | 0.079 in | 2 mm | Flash | Keying Slot | 0.079 in | 2 mm | UL94 V-0 | |
Adam Tech | Through Hole Right Angle | Square | Brass | Solder | Flash | 250 VAC | 0.11 in | 2.79 mm | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Gold | 5.6 mm | 0.22 in | Male Pin | Shrouded - 4 Wall | All | 26 | Header | Board to Cable/Wire | Black | -55 °C | 105 ░C | 2 | Push-Pull | 0.079 in | 2 mm | Flash | Keying Slot | 0.079 in | 2 mm | UL94 V-0 | |
Adam Tech | Surface Mount | Square | Brass | Solder | Flash | 250 VAC | Nylon 6T Polyamide (PA6T) | Gold | Gold | 6.05 mm | 0.238 in | Male Pin | Shrouded - 4 Wall | All | 40 | Header | Board to Cable/Wire | Black | -40 °C | 105 ░C | 2 | Push-Pull | 0.079 in | 2 mm | Flash | Keying Slot | 0.079 in | 2 mm | UL94 V-0 | |||
Adam Tech | Surface Mount | Square | Brass | Solder | Flash | 250 VAC | Nylon 6T Polyamide (PA6T) | Gold | Gold | 6.05 mm | 0.238 in | Male Pin | Shrouded - 4 Wall | All | Header | Board to Cable/Wire | Black | -40 °C | 105 ░C | 2 | Push-Pull | 0.079 in | 2 mm | Flash | Keying Slot | 0.079 in | 2 mm | UL94 V-0 | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.97 | |
| 10 | $ 0.74 | |||
| 80 | $ 0.58 | |||
| 440 | $ 0.49 | |||
Description
General part information
2BHR Series
Connector Header Surface Mount 16 position 0.079" (2.00mm)
