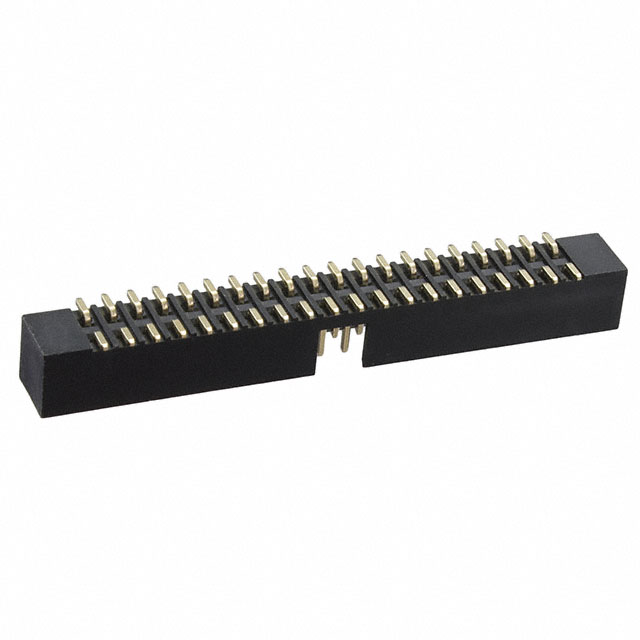

2BHR-40-VUA-SMT

Active

Adam Tech

CONN HEADER SMD 40POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

2BHR-40-VUA-SMT

Active

Adam Tech

CONN HEADER SMD 40POS 2MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2BHR-40-VUA-SMT

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	6.05 mm
Insulation Height	0.238 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

2BHR Series

Part	Mounting Type	Contact Shape	Contact Material	Termination	Contact Finish Thickness - Mating	Voltage Rating	Contact Length - Post [x]	Contact Length - Post	Insulation Material	Contact Finish - Post	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Type	Shrouding	Number of Positions Loaded	Number of Positions	Connector Type	Style	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Post	Features	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Number of Positions
Adam Tech 2BHR-40-VUA	Through Hole	Square	Brass	Solder	Flash	250 VAC	0.11 in	2.79 mm	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Gold	5.6 mm	0.22 in	Male Pin	Shrouded - 4 Wall	All	40	Header	Board to Cable/Wire	Black	-40 °C	105 ░C	2	Push-Pull	0.079 in	2 mm	Flash	Keying Slot	0.079 in	2 mm	UL94 V-0
Adam Tech 2BHR-16-VUA	Through Hole	Square	Brass	Solder	Flash	250 VAC	0.11 in	2.79 mm	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Gold	5.6 mm	0.22 in	Male Pin	Shrouded - 4 Wall	All		Header	Board to Cable/Wire	Black	-40 °C	105 ░C	2	Push-Pull	0.079 in	2 mm	Flash	Keying Slot	0.079 in	2 mm	UL94 V-0	16
Adam Tech 2BHR-08-VUA-SMT	Surface Mount	Square	Brass	Solder	Flash	250 VAC			Nylon 6T Polyamide (PA6T)	Gold	Gold	6.05 mm	0.238 in	Male Pin	Shrouded - 4 Wall	All	8	Header	Board to Cable/Wire	Black	-40 °C	105 ░C	2	Push-Pull	0.079 in	2 mm	Flash	Keying Slot	0.079 in	2 mm	UL94 V-0
Adam Tech 2BHR-10-HUA	Through Hole Right Angle	Square	Brass	Solder	Flash	250 VAC	0.11 in	2.79 mm	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Gold	5.6 mm	0.22 in	Male Pin	Shrouded - 4 Wall	All	10	Header	Board to Cable/Wire	Black	-55 °C	105 ░C	2	Push-Pull	0.079 in	2 mm	Flash	Keying Slot	0.079 in	2 mm	UL94 V-0
Adam Tech 2BHR-24-VUA-SMT	Surface Mount	Square	Brass	Solder	Flash	250 VAC			Nylon 6T Polyamide (PA6T)	Gold	Gold	6.05 mm	0.238 in	Male Pin	Shrouded - 4 Wall	All	24	Header	Board to Cable/Wire	Black	-40 °C	105 ░C	2	Push-Pull	0.079 in	2 mm	Flash	Keying Slot	0.079 in	2 mm	UL94 V-0
Adam Tech 2BHR-34-HUA	Through Hole Right Angle	Square	Brass	Solder	Flash	250 VAC	0.11 in	2.79 mm	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Gold	5.6 mm	0.22 in	Male Pin	Shrouded - 4 Wall	All	34	Header	Board to Cable/Wire	Black	-55 °C	105 ░C	2	Push-Pull	0.079 in	2 mm	Flash	Keying Slot	0.079 in	2 mm	UL94 V-0
Adam Tech 2BHR-24-HUA	Through Hole Right Angle	Square	Brass	Solder	Flash	250 VAC	0.11 in	2.79 mm	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Gold	5.6 mm	0.22 in	Male Pin	Shrouded - 4 Wall	All	24	Header	Board to Cable/Wire	Black	-55 °C	105 ░C	2	Push-Pull	0.079 in	2 mm	Flash	Keying Slot	0.079 in	2 mm	UL94 V-0
Adam Tech 2BHR-26-HUA	Through Hole Right Angle	Square	Brass	Solder	Flash	250 VAC	0.11 in	2.79 mm	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Gold	5.6 mm	0.22 in	Male Pin	Shrouded - 4 Wall	All	26	Header	Board to Cable/Wire	Black	-55 °C	105 ░C	2	Push-Pull	0.079 in	2 mm	Flash	Keying Slot	0.079 in	2 mm	UL94 V-0
Adam Tech 2BHR-40-VUA-SMT	Surface Mount	Square	Brass	Solder	Flash	250 VAC			Nylon 6T Polyamide (PA6T)	Gold	Gold	6.05 mm	0.238 in	Male Pin	Shrouded - 4 Wall	All	40	Header	Board to Cable/Wire	Black	-40 °C	105 ░C	2	Push-Pull	0.079 in	2 mm	Flash	Keying Slot	0.079 in	2 mm	UL94 V-0
Adam Tech 2BHR-16-VUA-SMT	Surface Mount	Square	Brass	Solder	Flash	250 VAC			Nylon 6T Polyamide (PA6T)	Gold	Gold	6.05 mm	0.238 in	Male Pin	Shrouded - 4 Wall	All		Header	Board to Cable/Wire	Black	-40 °C	105 ░C	2	Push-Pull	0.079 in	2 mm	Flash	Keying Slot	0.079 in	2 mm	UL94 V-0	16
