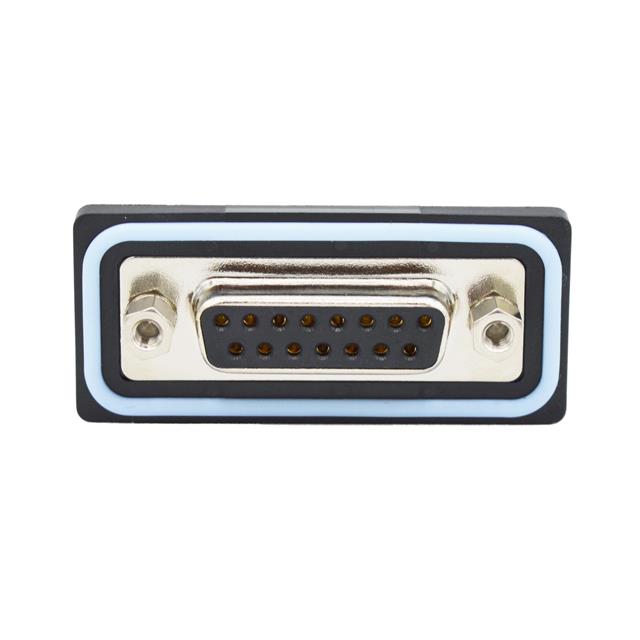

D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 15 CONTACTS, DA, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
SDF-R15-213L462
ActiveMH Connectors
D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 15 CONTACTS, DA, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDF-R15-213L462 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Board Lock, Mounting Brackets |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
SDF-R15 Series
| Part | Dielectric Material | Shell Material, Finish | Connector Type | Features | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Mounting Type | Number of Rows | Flange Feature | Material Flammability Rating | Contact Finish | Shell Size, Connector Layout | Connector Style | Contact Material | Termination | Ingress Protection | Contact Finish Thickness | Color | Number of Positions | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Receptacle Female Sockets | Board Lock Mounting Brackets | Signal | -25 °C | 85 °C | 5 A | Panel Mount Right Angle Through Hole | 2 | Female Screwlock (4-40) Mating Side | UL94 V-0 | Gold | 2 | D-Sub | Brass | Solder | IP67 - Dust Tight Waterproof | Flash | Black | 15 | ||
MH Connectors | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Male Pins Plug | Grounding Indents | Signal | -25 °C | 85 °C | 5 A | Panel Mount Right Angle Through Hole | 2 | Female Screwlock (4-40) Mating Side | UL94 V-0 | Gold | 2 | D-Sub | Brass | Solder | IP67 - Dust Tight Waterproof | Black | 15 | 0.76 Ám | 30 Áin | |
MH Connectors | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Receptacle Female Sockets | Signal | -25 °C | 85 °C | 5 A | Panel Mount Right Angle Through Hole | 2 | Female Screwlock (4-40) Mating Side | UL94 V-0 | Gold | 2 | D-Sub | Brass | Solder | IP67 - Dust Tight Waterproof | Flash | Black | 15 | |||
MH Connectors | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Male Pins Plug | Board Lock Grounding Indents Mounting Brackets | Signal | -25 °C | 85 °C | 5 A | Panel Mount Right Angle Through Hole | 2 | Female Screwlock (4-40) Mating Side | UL94 V-0 | Gold | 2 | D-Sub | Brass | Solder | IP67 - Dust Tight Waterproof | Black | 15 | 0.76 Ám | 30 Áin | |
MH Connectors | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Male Pins Plug | Board Lock Grounding Indents Mounting Brackets | Signal | -25 °C | 85 °C | 5 A | Panel Mount Right Angle Through Hole | 2 | Female Screwlock (4-40) Mating Side | UL94 V-0 | Gold | 2 | D-Sub | Brass | Solder | IP67 - Dust Tight Waterproof | Flash | Black | 15 | ||
MH Connectors | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Receptacle Female Sockets | Board Lock Mounting Brackets | Signal | -25 °C | 85 °C | 5 A | Panel Mount Right Angle Through Hole | 2 | Female Screwlock (4-40) Mating Side | UL94 V-0 | Gold | 2 | D-Sub | Brass | Solder | IP67 - Dust Tight Waterproof | Black | 15 | 0.76 Ám | 30 Áin | |
MH Connectors | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Receptacle Female Sockets | Signal | -25 °C | 85 °C | 5 A | Panel Mount Right Angle Through Hole | 2 | Female Screwlock (4-40) Mating Side | UL94 V-0 | Gold | 2 | D-Sub | Brass | Solder | IP67 - Dust Tight Waterproof | Black | 15 | 0.76 Ám | 30 Áin | ||
MH Connectors | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Male Pins Plug | Grounding Indents | Signal | -25 °C | 85 °C | 5 A | Panel Mount Right Angle Through Hole | 2 | Female Screwlock (4-40) Mating Side | UL94 V-0 | Gold | 2 | D-Sub | Brass | Solder | IP67 - Dust Tight Waterproof | Flash | Black | 15 |
