SDF-R15-113L461

Active

MH Connectors

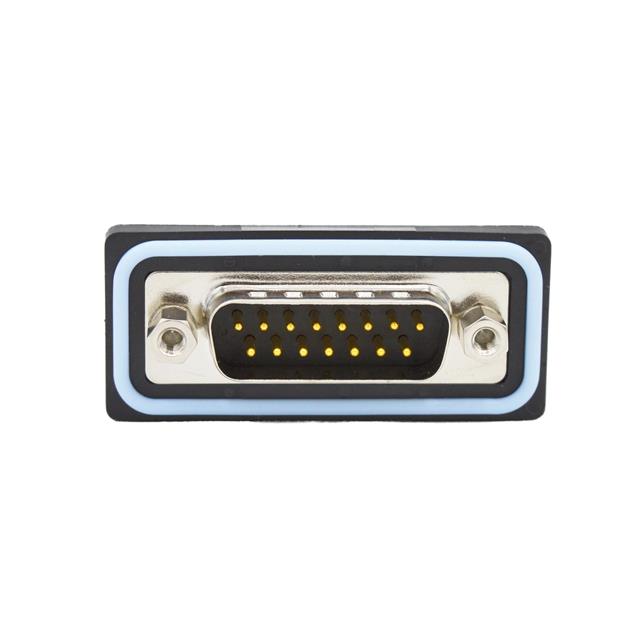

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDF-R15-113L461

Active

MH Connectors

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDF-R15-113L461

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

SDF-R15 Series

Part	Dielectric Material	Shell Material, Finish	Connector Type	Features	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Number of Rows	Flange Feature	Material Flammability Rating	Contact Finish	Shell Size, Connector Layout	Connector Style	Contact Material	Termination	Ingress Protection	Contact Finish Thickness	Color	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
MH Connectors SDF-R15-213L461	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Receptacle Female Sockets	Board Lock Mounting Brackets	Signal	-25 °C	85 °C	5 A	Panel Mount Right Angle Through Hole	2	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	2	D-Sub	Brass	Solder	IP67 - Dust Tight Waterproof	Flash	Black	15
MH Connectors SDF-R15-113L012	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Male Pins Plug	Grounding Indents	Signal	-25 °C	85 °C	5 A	Panel Mount Right Angle Through Hole	2	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	2	D-Sub	Brass	Solder	IP67 - Dust Tight Waterproof		Black	15	0.76 Ám	30 Áin
MH Connectors SDF-R15-213L011	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Receptacle Female Sockets		Signal	-25 °C	85 °C	5 A	Panel Mount Right Angle Through Hole	2	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	2	D-Sub	Brass	Solder	IP67 - Dust Tight Waterproof	Flash	Black	15
MH Connectors SDF-R15-113L462	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets	Signal	-25 °C	85 °C	5 A	Panel Mount Right Angle Through Hole	2	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	2	D-Sub	Brass	Solder	IP67 - Dust Tight Waterproof		Black	15	0.76 Ám	30 Áin
MH Connectors SDF-R15-113L461	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets	Signal	-25 °C	85 °C	5 A	Panel Mount Right Angle Through Hole	2	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	2	D-Sub	Brass	Solder	IP67 - Dust Tight Waterproof	Flash	Black	15
MH Connectors SDF-R15-213L462	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Receptacle Female Sockets	Board Lock Mounting Brackets	Signal	-25 °C	85 °C	5 A	Panel Mount Right Angle Through Hole	2	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	2	D-Sub	Brass	Solder	IP67 - Dust Tight Waterproof		Black	15	0.76 Ám	30 Áin
MH Connectors SDF-R15-213L012	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Receptacle Female Sockets		Signal	-25 °C	85 °C	5 A	Panel Mount Right Angle Through Hole	2	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	2	D-Sub	Brass	Solder	IP67 - Dust Tight Waterproof		Black	15	0.76 Ám	30 Áin
MH Connectors SDF-R15-113L011	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	Male Pins Plug	Grounding Indents	Signal	-25 °C	85 °C	5 A	Panel Mount Right Angle Through Hole	2	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	2	D-Sub	Brass	Solder	IP67 - Dust Tight Waterproof	Flash	Black	15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 16.56
		10	$ 12.73
		25	$ 11.52
		40	$ 10.95
		80	$ 10.18
		230	$ 9.14
		440	$ 8.58
		945	$ 7.98

Description

General part information

SDF-R15 Series

15 Position D-Sub Plug, Male Pins Connector
