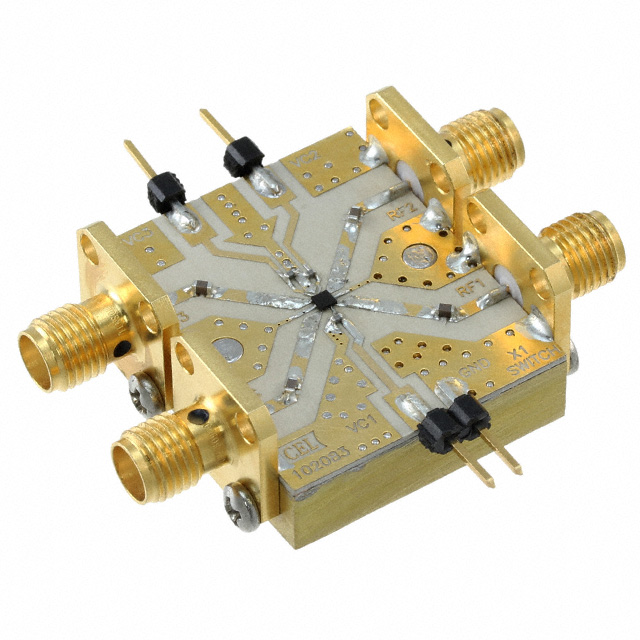

CG2430X1-EVAL

Active

CEL

EVAL BOARD FOR CG2430X1

Search across all available documentation for this part.

Active

CEL

EVAL BOARD FOR CG2430X1

Technical Specifications

Parameters and characteristics for this part

Specification	CG2430X1-EVAL

For Use With/Related Products	CG2430X1
Frequency [Max]	6 GHz
Frequency [Min]	100 MHz
Supplied Contents	Board(s)
Type	SP3T

Part	Supplied Contents	For Use With/Related Products	Frequency [Max]	Frequency [Min]	Type	Circuit	Test Frequency	Supplier Device Package	Impedance	Insertion Loss	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Type	Frequency Range [Min]	Frequency Range [Max]	Package / Case	P1dB
CEL CG2430X1-EVAL	Board(s)	CG2430X1	6 GHz	100 MHz	SP3T
CEL CG2430X1						SP3T	6 GHz	8-TSON (1.5x1.5)	50 Ohms	0.6 dB	1.8 V	5 V	802.11a/b/g/n/ac	100 MHz	6 GHz	8-XFDFN Exposed Pad	31 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CG2430X1 - Switch, SP3T 100MHz ~ 6GHz Evaluation Board
