CG2430X1
ActiveCEL
IC RF SWITCH SP3T 6GHZ 8TSON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CG2430X1
ActiveCEL
IC RF SWITCH SP3T 6GHZ 8TSON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CG2430X1 |
|---|---|
| Circuit | SP3T |
| Frequency Range [Max] | 6 GHz |
| Frequency Range [Min] | 100 MHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.6 dB |
| P1dB | 31 dBm |

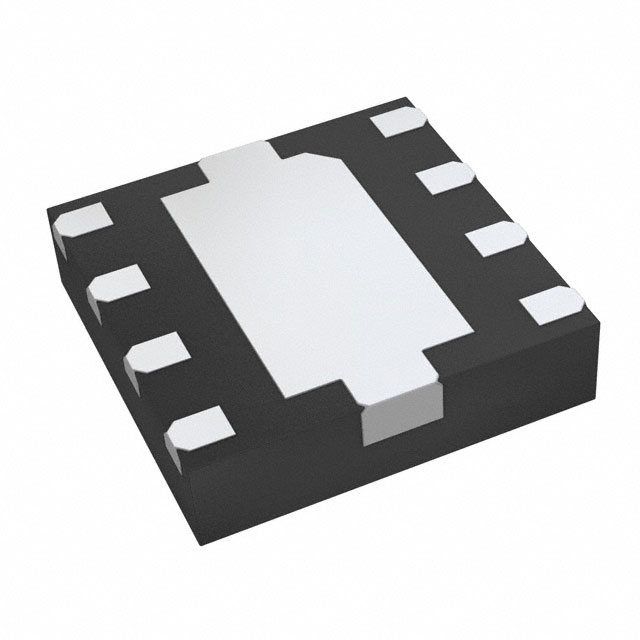

| Package / Case | 8-XFDFN Exposed Pad |
| RF Type | 802.11a/b/g/n/ac |
| Supplier Device Package | 8-TSON (1.5x1.5) |
| Test Frequency | 6 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 1.07 | |
| 10 | $ 0.96 | |||
| 25 | $ 0.91 | |||
| 200 | $ 0.77 | |||
| 400 | $ 0.72 | |||
| 600 | $ 0.64 | |||
Description
General part information
CG2430 Series
RF Switch IC 802.11a/b/g/n/ac SP3T 6 GHz 50Ohm 8-TSON (1.5x1.5)
