UMD2NHE3-TPQ2

Active

Micro Commercial Components

TRANS PREBIAS 1NPN 1PNP SOT-363

Search across all available documentation for this part.

Active

Micro Commercial Components

TRANS PREBIAS 1NPN 1PNP SOT-363

Technical Specifications

Parameters and characteristics for this part

Specification	UMD2NHE3-TPQ2

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	500 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	56 hFE
Frequency - Transition	250 MHz
Grade	Automotive
Mounting Type	Surface Mount

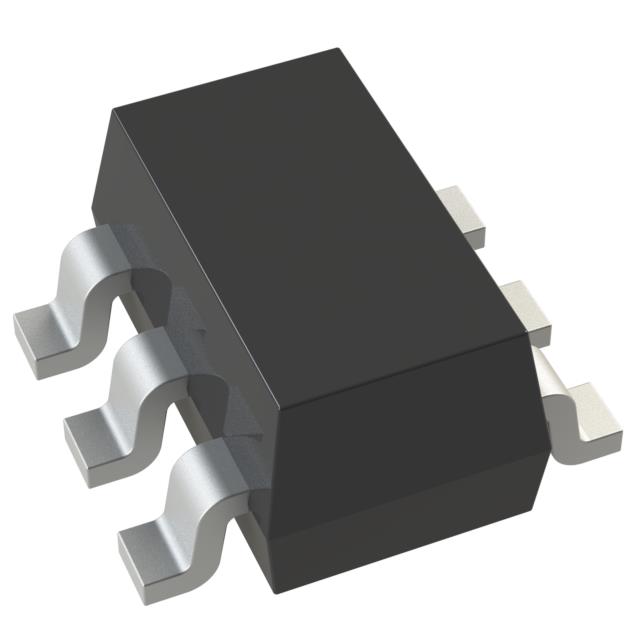

Package / Case	6-TSSOP, SC-88, SOT-363
Qualification	AEC-Q101
Resistor - Base (R1)	22 kOhms
Resistor - Emitter Base (R2)	22 kOhms
Supplier Device Package	SOT-363
Vce Saturation (Max) @ Ib, Ic	300 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Current - Collector Cutoff (Max) [Max]	Transistor Type	Grade	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Mounting Type	Qualification	Resistor - Base (R1)	Resistor - Emitter Base (R2)	Package / Case
Micro Commercial Components UMD2NHE3-TP	500 nA	1 NPN - Pre-Biased 1 PNP	Automotive	250 MHz	100 mA	50 V	SOT-363	56 hFE	300 mV	Surface Mount	AEC-Q101	22 kOhms	22 kOhms	6-TSSOP SC-88 SOT-363
Micro Commercial Components UMD2NHE3-TPQ2	500 nA		Automotive	250 MHz	100 mA	50 V	SOT-363	56 hFE	300 mV	Surface Mount	AEC-Q101	22 kOhms	22 kOhms	6-TSSOP SC-88 SOT-363

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased 50V 100mA 250MHz 150mW Surface Mount SOT-363
