UMD2NHE3-TP
ActiveMicro Commercial Components
DIGITAL TRANSISTOR NPN/PNP 50V 0
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UMD2NHE3-TP
ActiveMicro Commercial Components
DIGITAL TRANSISTOR NPN/PNP 50V 0
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UMD2NHE3-TP |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 100 mA |
| Current - Collector Cutoff (Max) [Max] | 500 nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 56 hFE |
| Frequency - Transition | 250 MHz |
| Grade | Automotive |
| Mounting Type | Surface Mount |

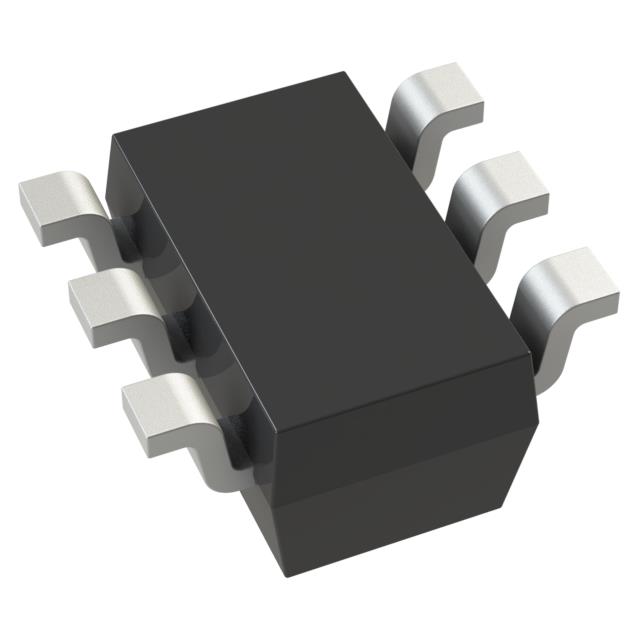

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Qualification | AEC-Q101 |
| Resistor - Base (R1) | 22 kOhms |
| Resistor - Emitter Base (R2) | 22 kOhms |
| Supplier Device Package | SOT-363 |
| Transistor Type | 1 PNP, 1 NPN - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 300 mV |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.44 | ||
| 10 | $ 0.27 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 3000 | $ 0.10 | ||
| 6000 | $ 0.09 | |||
| 9000 | $ 0.08 | |||
| 15000 | $ 0.08 | |||
| 21000 | $ 0.07 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.06 | |||
Description
General part information
UMD2 Series
Pre-Biased Bipolar Transistor (BJT) 1 NPN - Pre-Biased, 1 PNP 50V 100mA 250MHz 150mW Surface Mount SOT-363
