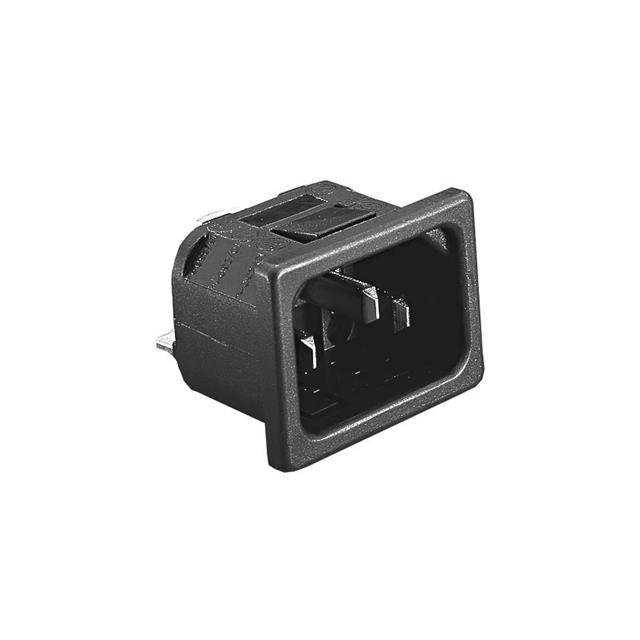

PX0575/30/48

Active

BULGIN LIMITED

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	PX0575/30/48

Accomodates a Fuse	False
Approval Agency	ENEC, CSA, CCC, UL, VDE
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.4 mm
Panel Cutout Dimensions [y]	19.8 mm
Panel Thickness	3 mm
Panel Thickness	0.118 in
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Termination	Connector Style	Panel Thickness [custom]	Panel Thickness [custom]	Approval Agency	Connector Type	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Material Flammability Rating	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Filter Type	Panel Thickness	Panel Thickness	Termination	Termination
BULGIN LIMITED PX0575/15/PC	Solder	IEC 320-C14	0.059 in	1.5 mm	CCC CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In Through Hole Right Angle	19.8 mm	27.4 mm	UL94 V-0	10 A	250 VAC	Unfiltered - Commercial
BULGIN LIMITED PX0575/15/28	Solder	IEC 320-C14	0.059 in	1.5 mm	CCC CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	19.8 mm	27.4 mm	UL94 V-0	10 A	250 VAC	Unfiltered - Commercial
BULGIN LIMITED PX0575/10/28	Solder	IEC 320-C14			CCC CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	19.8 mm	27.4 mm	UL94 V-0	10 A	250 VAC	Unfiltered - Commercial	1 mm	0.039 in
BULGIN LIMITED PX0575/15/63	Quick Connect	IEC 320-C14	0.059 in	1.5 mm	CCC CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	19.8 mm	27.4 mm	UL94 V-0	10 A	250 VAC	Unfiltered - Commercial			0.25 in	6.3 mm
BULGIN LIMITED PX0575/30/48	Quick Connect	IEC 320-C14			CCC CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	19.8 mm	27.4 mm	UL94 V-0	10 A	250 VAC	Unfiltered - Commercial	3 mm	0.118 in		0.189 " 4.8 mm
BULGIN LIMITED PX0575/30/28	Solder	IEC 320-C14			CCC CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	19.8 mm	27.4 mm	UL94 V-0	10 A	250 VAC	Unfiltered - Commercial	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
