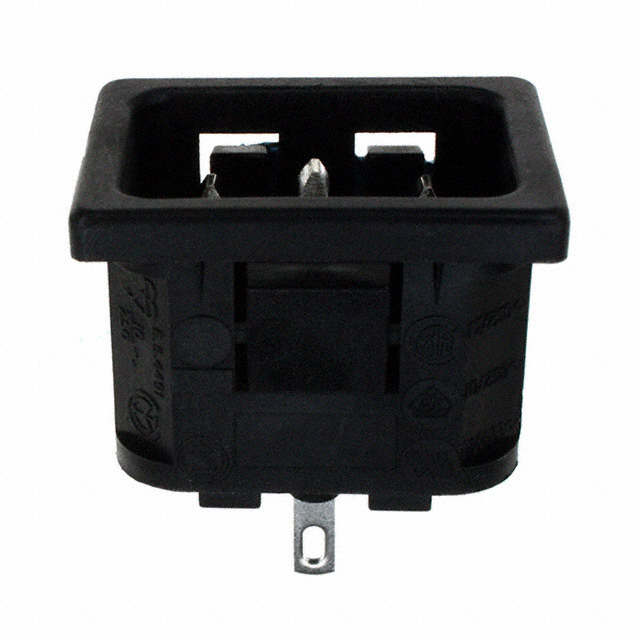

PX0575/15/28

Active

BULGIN LIMITED

IEC POWER CONNECTOR, IEC C14 INLET, 10 A, 250 VAC, SOLDER, FLANGE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

PX0575/15/28

Active

BULGIN LIMITED

IEC POWER CONNECTOR, IEC C14 INLET, 10 A, 250 VAC, SOLDER, FLANGE MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0575/15/28

Accomodates a Fuse	False
Approval Agency	ENEC, CSA, CCC, UL, VDE
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.4 mm
Panel Cutout Dimensions [y]	19.8 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

PX0575 Series

Part	Termination	Connector Style	Panel Thickness [custom]	Panel Thickness [custom]	Approval Agency	Connector Type	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Material Flammability Rating	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Filter Type	Panel Thickness	Panel Thickness	Termination	Termination
BULGIN LIMITED PX0575/15/PC	Solder	IEC 320-C14	0.059 in	1.5 mm	CCC CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In Through Hole Right Angle	19.8 mm	27.4 mm	UL94 V-0	10 A	250 VAC	Unfiltered - Commercial
BULGIN LIMITED PX0575/15/28	Solder	IEC 320-C14	0.059 in	1.5 mm	CCC CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	19.8 mm	27.4 mm	UL94 V-0	10 A	250 VAC	Unfiltered - Commercial
BULGIN LIMITED PX0575/10/28	Solder	IEC 320-C14			CCC CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	19.8 mm	27.4 mm	UL94 V-0	10 A	250 VAC	Unfiltered - Commercial	1 mm	0.039 in
BULGIN LIMITED PX0575/15/63	Quick Connect	IEC 320-C14	0.059 in	1.5 mm	CCC CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	19.8 mm	27.4 mm	UL94 V-0	10 A	250 VAC	Unfiltered - Commercial			0.25 in	6.3 mm
BULGIN LIMITED PX0575/30/48	Quick Connect	IEC 320-C14			CCC CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	19.8 mm	27.4 mm	UL94 V-0	10 A	250 VAC	Unfiltered - Commercial	3 mm	0.118 in		0.189 " 4.8 mm
BULGIN LIMITED PX0575/30/28	Solder	IEC 320-C14			CCC CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	19.8 mm	27.4 mm	UL94 V-0	10 A	250 VAC	Unfiltered - Commercial	3 mm	0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.71
		10	$ 3.37
		25	$ 3.19
		50	$ 3.12
		200	$ 2.97
		400	$ 2.60
		600	$ 2.52
		1000	$ 2.15
		2600	$ 2.00
Newark	Each	1	$ 4.49
		10	$ 3.76
		100	$ 3.29
		250	$ 3.10
		500	$ 2.85
		1000	$ 2.66
		2500	$ 2.61
		5000	$ 2.57

Description

General part information

PX0575 Series

The PX0575/15/28 is a C14 cold condition IEC Snap Fit to Panel Inlet with 1.5mm panel and black 2.8mm solder tag termination. It has EN60 320-1 standard sheet C14 class I.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Technical Data Sheet EN

Datasheet
