PX0707/P/03

Active

BULGIN LIMITED

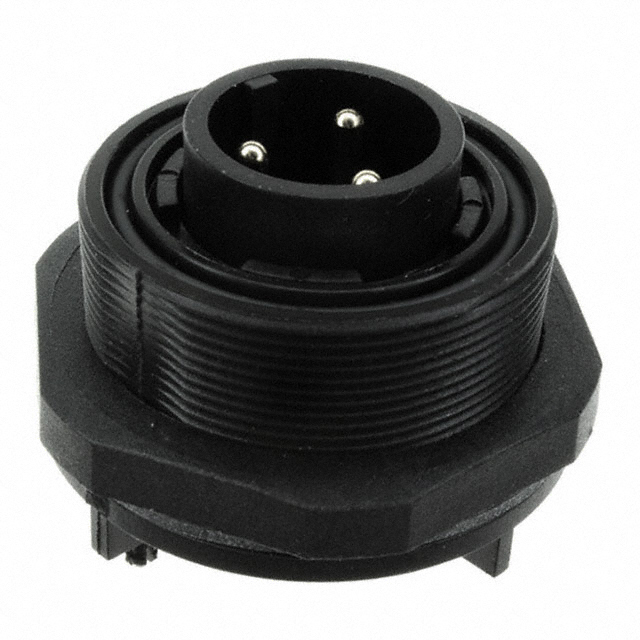

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, 3 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

PX0707/P/03

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, 3 CONTACTS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0707/P/03

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	12 A
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Solder
Voltage Rating	277 VAC/DC

standard-buccaneer-r Series

Part	Color	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Primary Material	Mounting Type	Material Flammability Rating	Ingress Protection	Shell Material	Current Rating (Amps)	Contact Material	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Orientation	Shielding	Insert Material	Connector Type	Features	Contact Finish - Mating	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Feature	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Cable Opening [custom]	Cable Opening [custom]
BULGIN LIMITED PX0745/S	Black	8 mm	6 mm	0.315 in	0.236 in	Plastic	Free Hanging (In-Line)	UL94 HB	IP68 IP69K	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Glass Filled Nylon Polyamide (PA)	-20 C	70 °C	Screw	Keyed	Unshielded	Nylon Polyamide (PA)	Female Sockets Plug	Backshell Coupling Nut	Nickel	277 VAC/DC
BULGIN LIMITED PX0707/S/12	Black					Plastic	Panel Mount Through Hole	UL94 HB	IP68 IP69K	Glass Filled Nylon Polyamide (PA)	5 A	Copper Alloy		-20 C	70 °C	Solder	Keyed	Unshielded	Nylon Polyamide (PA)	Receptacle Female Sockets		Gold	50 VAC	0.099 µm	3.9 µin	12	Bulkhead - Front Side Nut
BULGIN LIMITED PX0745/P	Black	8 mm	6 mm	0.315 in	0.236 in	Plastic	Free Hanging (In-Line)	UL94 HB	IP68 IP69K	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Glass Filled Nylon Polyamide (PA)	-20 C	70 °C	Screw	Keyed	Unshielded	Nylon Polyamide (PA)	Male Pins Plug	Backshell Coupling Nut	Nickel	277 VAC/DC
BULGIN LIMITED PX0707/S/03	Black					Plastic	Panel Mount Through Hole	UL94 HB	IP68 IP69K	Glass Filled Nylon Polyamide (PA)	12 A			-20 C	70 °C	Solder	Keyed	Unshielded	Nylon Polyamide (PA)	Receptacle Female Sockets		Gold	277 VAC/DC				Bulkhead - Front Side Nut	3	1	2
BULGIN LIMITED PX0745/P/07	Black					Plastic	Free Hanging (In-Line)	UL94 HB	IP68 IP69K	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Glass Filled Nylon Polyamide (PA)	-20 C	70 °C	Screw	Keyed	Unshielded	Nylon Polyamide (PA)	Male Pins Plug	Backshell Coupling Nut	Nickel	277 VAC/DC								0.276 in 0.354 in	7 mm 9 mm
BULGIN LIMITED PX0707/S/06	Black					Plastic	Panel Mount Through Hole	UL94 HB	IP68 IP69K	Glass Filled Nylon Polyamide (PA)	5 A			-20 C	70 °C	Solder	Keyed	Unshielded	Nylon Polyamide (PA)	Receptacle Female Sockets		Gold	277 VAC/DC			6	Bulkhead - Front Side Nut
BULGIN LIMITED PX0761/S	Black					Plastic		UL94 HB	IP68 IP69K	Glass Filled Nylon Polyamide (PA)	6 A	Brass		-20 C	70 °C	Screw	Keyed	Unshielded	Nylon Polyamide (PA)	Receptacle Female Sockets		Nickel	277 VAC/DC			4	Flange
BULGIN LIMITED PX0707/P/03	Black					Plastic	Panel Mount Through Hole	UL94 HB	IP68 IP69K	Glass Filled Nylon Polyamide (PA)	12 A			-20 C	70 °C	Solder	Keyed	Unshielded	Nylon Polyamide (PA)	Male Pins Receptacle		Gold	277 VAC/DC				Bulkhead - Front Side Nut	3	1	2
BULGIN LIMITED PX0707/P/12	Black					Plastic	Panel Mount Through Hole	UL94 HB	IP68 IP69K	Glass Filled Nylon Polyamide (PA)	5 A	Copper Alloy		-20 C	70 °C	Solder	Keyed	Unshielded	Nylon Polyamide (PA)	Male Pins Receptacle		Gold	50 VAC	0.099 µm	3.9 µin	12	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 19.51
Newark	Each	50	$ 30.58
		100	$ 24.95

Description

General part information

standard-buccaneer-r Series

3 (2 Power + PE) Position Circular Connector Receptacle, Male Pins Solder
