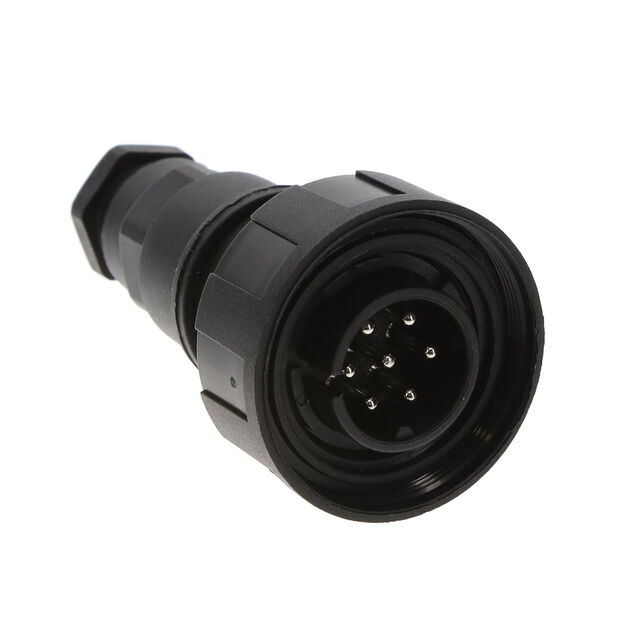

CONNECTOR: CIRCULAR; PLUG; MALE; PIN: 7; 5A; 250V; IP68; UL94V-0
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PX0745/P/07
ActiveBULGIN LIMITED
CONNECTOR: CIRCULAR; PLUG; MALE; PIN: 7; 5A; 250V; IP68; UL94V-0
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0745/P/07 |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA), Glass Filled |
| Cable Opening [custom] | 0.276 in, 0.354 in |
| Cable Opening [custom] | 7 mm, 9 mm |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Nickel |
| Contact Material | Brass |
| Current Rating (Amps) | 3 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP68, IP69K |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 277 VAC/DC |
standard-buccaneer-r Series
| Part | Color | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Primary Material | Mounting Type | Material Flammability Rating | Ingress Protection | Shell Material | Current Rating (Amps) | Contact Material | Backshell Material, Plating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Orientation | Shielding | Insert Material | Connector Type | Features | Contact Finish - Mating | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Mounting Feature | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | Black | 8 mm | 6 mm | 0.315 in | 0.236 in | Plastic | Free Hanging (In-Line) | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 3 A | Brass | Glass Filled Nylon Polyamide (PA) | -20 C | 70 °C | Screw | Keyed | Unshielded | Nylon Polyamide (PA) | Female Sockets Plug | Backshell Coupling Nut | Nickel | 277 VAC/DC | |||||||||
BULGIN LIMITED | Black | Plastic | Panel Mount Through Hole | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 5 A | Copper Alloy | -20 C | 70 °C | Solder | Keyed | Unshielded | Nylon Polyamide (PA) | Receptacle Female Sockets | Gold | 50 VAC | 0.099 µm | 3.9 µin | 12 | Bulkhead - Front Side Nut | |||||||||||
BULGIN LIMITED | Black | 8 mm | 6 mm | 0.315 in | 0.236 in | Plastic | Free Hanging (In-Line) | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 3 A | Brass | Glass Filled Nylon Polyamide (PA) | -20 C | 70 °C | Screw | Keyed | Unshielded | Nylon Polyamide (PA) | Male Pins Plug | Backshell Coupling Nut | Nickel | 277 VAC/DC | |||||||||
BULGIN LIMITED | Black | Plastic | Panel Mount Through Hole | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 12 A | -20 C | 70 °C | Solder | Keyed | Unshielded | Nylon Polyamide (PA) | Receptacle Female Sockets | Gold | 277 VAC/DC | Bulkhead - Front Side Nut | 3 | 1 | 2 | ||||||||||||
BULGIN LIMITED | Black | Plastic | Free Hanging (In-Line) | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 3 A | Brass | Glass Filled Nylon Polyamide (PA) | -20 C | 70 °C | Screw | Keyed | Unshielded | Nylon Polyamide (PA) | Male Pins Plug | Backshell Coupling Nut | Nickel | 277 VAC/DC | 0.276 in 0.354 in | 7 mm 9 mm | |||||||||||
BULGIN LIMITED | Black | Plastic | Panel Mount Through Hole | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 5 A | -20 C | 70 °C | Solder | Keyed | Unshielded | Nylon Polyamide (PA) | Receptacle Female Sockets | Gold | 277 VAC/DC | 6 | Bulkhead - Front Side Nut | ||||||||||||||
BULGIN LIMITED | Black | Plastic | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 6 A | Brass | -20 C | 70 °C | Screw | Keyed | Unshielded | Nylon Polyamide (PA) | Receptacle Female Sockets | Nickel | 277 VAC/DC | 4 | Flange | ||||||||||||||
BULGIN LIMITED | Black | Plastic | Panel Mount Through Hole | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 12 A | -20 C | 70 °C | Solder | Keyed | Unshielded | Nylon Polyamide (PA) | Male Pins Receptacle | Gold | 277 VAC/DC | Bulkhead - Front Side Nut | 3 | 1 | 2 | ||||||||||||
BULGIN LIMITED | Black | Plastic | Panel Mount Through Hole | UL94 HB | IP68 IP69K | Glass Filled Nylon Polyamide (PA) | 5 A | Copper Alloy | -20 C | 70 °C | Solder | Keyed | Unshielded | Nylon Polyamide (PA) | Male Pins Receptacle | Gold | 50 VAC | 0.099 µm | 3.9 µin | 12 | Bulkhead - Front Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
standard-buccaneer-r Series
7 (Power) Position Circular Connector Plug, Male Pins Screw
