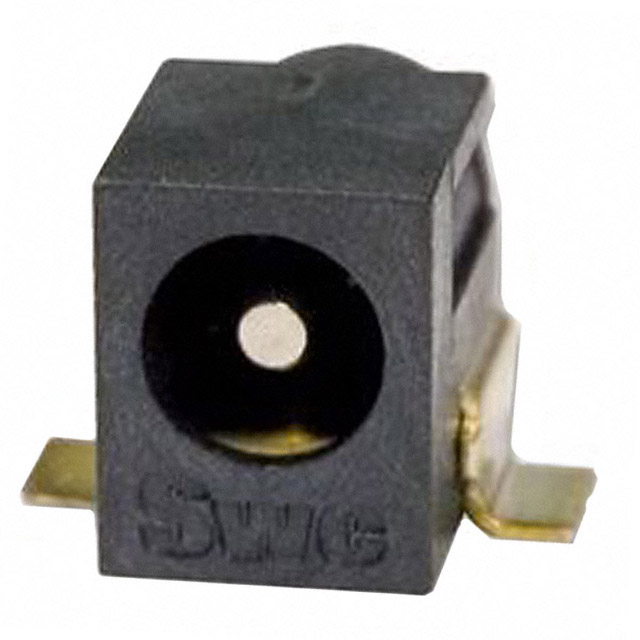

RASM712X

Active

Switchcraft Inc.

CONN PWR JACK 2.5X5.5MM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RASM712X

Actual Diameter [diameter]	2.5 mm, 6.3 mm
Actual Diameter [diameter]	0.098 in, 0.248 in
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Gender	Male
Housing Material	Thermoplastic
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "
Internal Switch(s)	Single Switch, Normally Closed
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Shielding	Unshielded
Termination	Solder

RASH71 Series

DC Power Connectors BKZ Locking Series 2.0mm Surface Mount

Part	Shielding	Current Rating (Amps)	Contact Material	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Color	Termination	Contact Material - Plating [custom]	Number of Positions/Contacts	Internal Switch(s)	Connector Type	Gender	Mounting Type	Housing Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Body Material	Actual Diameter	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Insulation Color	Features
Switchcraft Inc. RASM712X	Unshielded	5 A	Copper Alloy	2.5 mm 5.5 mm	0.098 " 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle	Thermoplastic	2.5 mm 6.3 mm	0.098 in 0.248 in
Switchcraft Inc. RASM722PX	Unshielded	5 A	Copper Alloy	2 mm 5.5 mm	0.079 in 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle	Thermoplastic	1.93 mm 6.3 mm	0.076 in 0.248 in
Switchcraft Inc. RASH722BKZ	Unshielded	5 A	Copper Alloy	2 mm 5.5 mm	0.079 in 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle Through Hole	Thermoplastic		0.079 in 0.248 in	Copper Alloy	2 mm 6.3 mm	65 °C	-30 ░C	24 VDC	Black
Switchcraft Inc. RASM722PTR13X	Unshielded	5 A	Copper Alloy	2.1 mm 5.5 mm	0.083 in 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle	Thermoplastic	1.93 mm 6.3 mm	0.076 in 0.248 in						Black
Switchcraft Inc. RAPC712BKZ	Unshielded	5 A	Copper Alloy	2.5 mm 5.5 mm	0.098 " 0.217 "	Black	Solder Eyelet(s)	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Through Hole Right Angle	Thermoplastic	2.5 mm 6.3 mm	0.098 in 0.248 in	Copper Alloy		65 °C	-30 ░C	24 VDC	Black
Switchcraft Inc. RASM722BKZ	Unshielded	5 A	Copper Alloy	2 mm 5.5 mm	0.079 in 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle	Thermoplastic		0.079 in 0.248 in	Copper Alloy	2 mm 6.3 mm	65 °C	-30 ░C	24 VDC	Black
Switchcraft Inc. RASH712PX	Unshielded	5 A	Copper Alloy	2.5 mm 5.5 mm	0.098 " 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle Through Hole	Thermoplastic	2.5 mm 6.3 mm	0.098 in 0.248 in							Board Guide
Switchcraft Inc. RASM712BKZ	Unshielded	5 A	Copper Alloy	2.5 mm 5.5 mm	0.098 " 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle	Thermoplastic	2.5 mm 6.3 mm	0.098 in 0.248 in	Copper Alloy		65 °C	-30 ░C	24 VDC	Black
Switchcraft Inc. RAPC722BKZ	Unshielded	5 A	Copper Alloy	2 mm 5.5 mm	0.079 in 0.217 "	Black	Solder Eyelet(s)	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Through Hole Right Angle	Thermoplastic		0.079 in 0.248 in	Copper Alloy	2 mm 6.3 mm	65 °C	-30 ░C	24 VDC	Black
Switchcraft Inc. RAPC712X	Unshielded	5 A	Brass	2.5 mm 5.5 mm	0.098 " 0.217 "	Black	Solder Eyelet(s)	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Through Hole Right Angle	Thermoplastic	2.5 mm 6.3 mm	0.098 in 0.248 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.28
		10	$ 2.51
		25	$ 2.26
		50	$ 2.09
		100	$ 1.94
		300	$ 1.72
		500	$ 1.63
		1000	$ 1.52
		2500	$ 1.39

Description

General part information

RASH71 Series

DC Power Connectors BKZ Locking Series 2.0mm Surface Mount

Documents

Technical documentation and resources

No documents available
