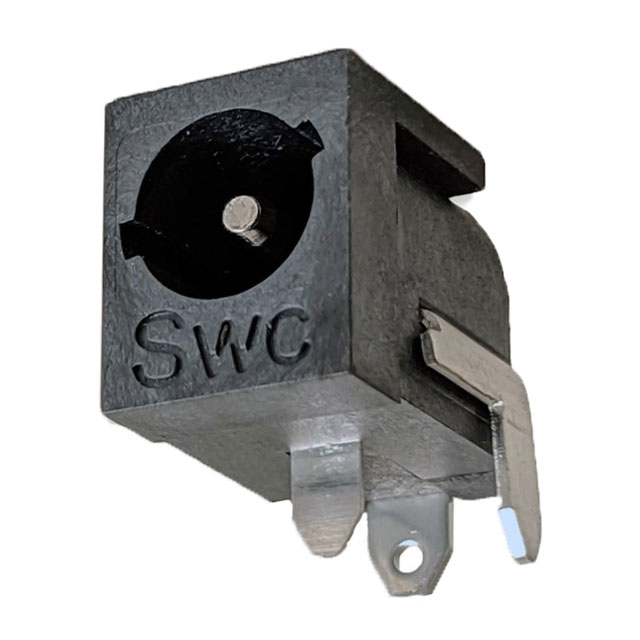

RAPC712BKZ

Active

Switchcraft Inc.

DC POWER CONNECTORS BKZ LOCKING SERIES 2.5MM RAPC MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RAPC712BKZ

Active

Switchcraft Inc.

DC POWER CONNECTORS BKZ LOCKING SERIES 2.5MM RAPC MOUNT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RAPC712BKZ

Actual Diameter [diameter]	2.5 mm, 6.3 mm
Actual Diameter [diameter]	0.098 in, 0.248 in
Body Color	Black
Body Material	Copper Alloy
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Gender	Male
Housing Material	Thermoplastic
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "
Insulation Color	Black
Internal Switch(s)	Single Switch, Normally Closed
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	24 VDC

RASH71 Series

DC Power Connectors BKZ Locking Series 2.0mm Surface Mount

Part	Shielding	Current Rating (Amps)	Contact Material	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Color	Termination	Contact Material - Plating [custom]	Number of Positions/Contacts	Internal Switch(s)	Connector Type	Gender	Mounting Type	Housing Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Body Material	Actual Diameter	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Insulation Color	Features
Switchcraft Inc. RASM712X	Unshielded	5 A	Copper Alloy	2.5 mm 5.5 mm	0.098 " 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle	Thermoplastic	2.5 mm 6.3 mm	0.098 in 0.248 in
Switchcraft Inc. RASM722PX	Unshielded	5 A	Copper Alloy	2 mm 5.5 mm	0.079 in 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle	Thermoplastic	1.93 mm 6.3 mm	0.076 in 0.248 in
Switchcraft Inc. RASH722BKZ	Unshielded	5 A	Copper Alloy	2 mm 5.5 mm	0.079 in 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle Through Hole	Thermoplastic		0.079 in 0.248 in	Copper Alloy	2 mm 6.3 mm	65 °C	-30 ░C	24 VDC	Black
Switchcraft Inc. RASM722PTR13X	Unshielded	5 A	Copper Alloy	2.1 mm 5.5 mm	0.083 in 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle	Thermoplastic	1.93 mm 6.3 mm	0.076 in 0.248 in						Black
Switchcraft Inc. RAPC712BKZ	Unshielded	5 A	Copper Alloy	2.5 mm 5.5 mm	0.098 " 0.217 "	Black	Solder Eyelet(s)	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Through Hole Right Angle	Thermoplastic	2.5 mm 6.3 mm	0.098 in 0.248 in	Copper Alloy		65 °C	-30 ░C	24 VDC	Black
Switchcraft Inc. RASM722BKZ	Unshielded	5 A	Copper Alloy	2 mm 5.5 mm	0.079 in 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle	Thermoplastic		0.079 in 0.248 in	Copper Alloy	2 mm 6.3 mm	65 °C	-30 ░C	24 VDC	Black
Switchcraft Inc. RASH712PX	Unshielded	5 A	Copper Alloy	2.5 mm 5.5 mm	0.098 " 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle Through Hole	Thermoplastic	2.5 mm 6.3 mm	0.098 in 0.248 in							Board Guide
Switchcraft Inc. RASM712BKZ	Unshielded	5 A	Copper Alloy	2.5 mm 5.5 mm	0.098 " 0.217 "	Black	Solder	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Surface Mount Right Angle	Thermoplastic	2.5 mm 6.3 mm	0.098 in 0.248 in	Copper Alloy		65 °C	-30 ░C	24 VDC	Black
Switchcraft Inc. RAPC722BKZ	Unshielded	5 A	Copper Alloy	2 mm 5.5 mm	0.079 in 0.217 "	Black	Solder Eyelet(s)	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Through Hole Right Angle	Thermoplastic		0.079 in 0.248 in	Copper Alloy	2 mm 6.3 mm	65 °C	-30 ░C	24 VDC	Black
Switchcraft Inc. RAPC712X	Unshielded	5 A	Brass	2.5 mm 5.5 mm	0.098 " 0.217 "	Black	Solder Eyelet(s)	Silver	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	Male	Through Hole Right Angle	Thermoplastic	2.5 mm 6.3 mm	0.098 in 0.248 in
