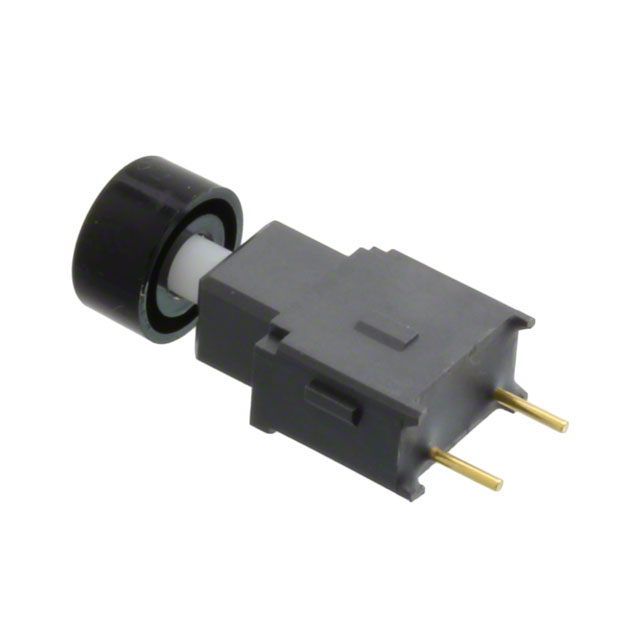

AB11AP-HA

Active

NKK Switches

SWITCH PUSH BUTTON OFF (ON) SPST ROUND PLUNGER 0.1A 28VAC 28VDC 0.4VA MOMENTARY THRU-HOLE PC PINS

Search across all available documentation for this part.

Active

NKK Switches

SWITCH PUSH BUTTON OFF (ON) SPST ROUND PLUNGER 0.1A 28VAC 28VDC 0.4VA MOMENTARY THRU-HOLE PC PINS

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Features	Type	Color - Actuator/Cap	Voltage Rating - AC	Electrical Life	Voltage Rating - DC	Mounting Type	Current Rating (Amps)	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Actuator Marking	Switch Function
NKK Switches AB11AP-FC	PC Pin	Sealed - Fully	Standard	Red	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Button Round	No Marking	Off-Mom
NKK Switches AB11AP-HB	PC Pin	Sealed - Fully	Standard	White	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Button Round	No Marking	Off-Mom
NKK Switches AB11AP-FA	PC Pin	Sealed - Fully	Standard	Black	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Button Round	No Marking	Off-Mom
NKK Switches AB11AP-FB	PC Pin	Sealed - Fully	Standard	White	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Button Round	No Marking	Off-Mom
NKK Switches AB11AP-HA	PC Pin	Sealed - Fully	Standard	Black	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Button Round	No Marking	Off-Mom
NKK Switches AB11AP/N/C	PC Pin	Sealed - Fully	Standard	White	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Plunger for Cap	No Marking	Off-Mom
NKK Switches AB11AP-HC	PC Pin	Sealed - Fully	Standard	Red	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Button Round	No Marking	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Through Hole
