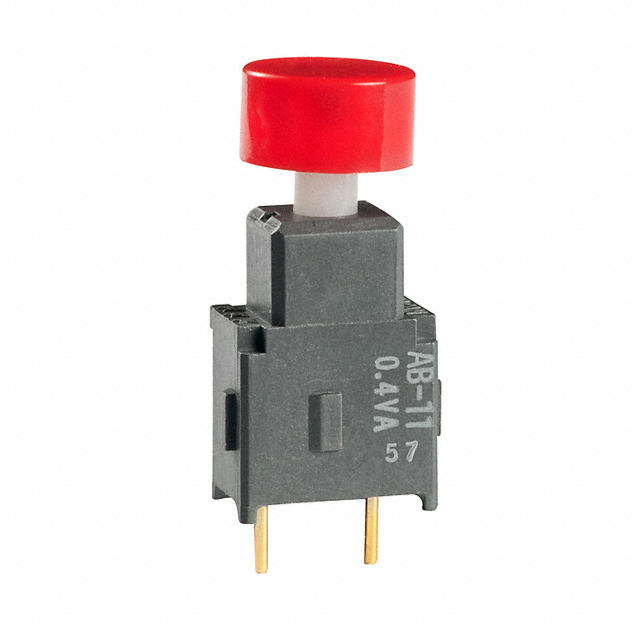

AB11AP-HC

Active

NKK Switches

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Features	Type	Color - Actuator/Cap	Voltage Rating - AC	Electrical Life	Voltage Rating - DC	Mounting Type	Current Rating (Amps)	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Actuator Marking	Switch Function
NKK Switches AB11AP-FC	PC Pin	Sealed - Fully	Standard	Red	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Button Round	No Marking	Off-Mom
NKK Switches AB11AP-HB	PC Pin	Sealed - Fully	Standard	White	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Button Round	No Marking	Off-Mom
NKK Switches AB11AP-FA	PC Pin	Sealed - Fully	Standard	Black	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Button Round	No Marking	Off-Mom
NKK Switches AB11AP-FB	PC Pin	Sealed - Fully	Standard	White	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Button Round	No Marking	Off-Mom
NKK Switches AB11AP-HA	PC Pin	Sealed - Fully	Standard	Black	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Button Round	No Marking	Off-Mom
NKK Switches AB11AP/N/C	PC Pin	Sealed - Fully	Standard	White	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Plunger for Cap	No Marking	Off-Mom
NKK Switches AB11AP-HC	PC Pin	Sealed - Fully	Standard	Red	28 V	50000 Cycles	28 V	Through Hole	0.4 VA	SPST-NO	-30 ░C	85 °C	Button Round	No Marking	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Through Hole

Technical documentation and resources
