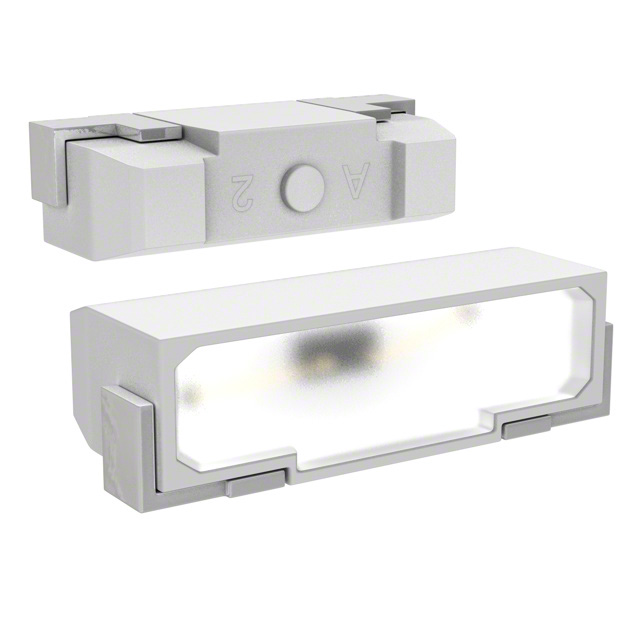

SMS1105UWDW

Active

Bivar Inc.

LED, WARM WHITE, SMD, 20 MA, 3.4 V, 1.2 CD

Search across all available documentation for this part.

Active

Bivar Inc.

LED, WARM WHITE, SMD, 20 MA, 3.4 V, 1.2 CD

Technical Specifications

Parameters and characteristics for this part

Part	Wavelength - Dominant	Viewing Angle	Height (Max) [Max] [z]	Configuration	Supplier Device Package	Current - Test	Package / Case	Lens Transparency	Lens Color	Voltage - Forward (Vf) (Typ)	Lens Size [y]	Lens Size [x]	Mounting Type	Color	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Lens Style
Bivar Inc. SMS1105YC	592 nm	120 °	0.8 mm	Standard	2-PLCC	20 mA	2-SMD J-Lead	Clear	Colorless	2.2 V	0.8 mm	2.5 mm	Surface Mount Right Angle	Yellow	250 mcd	1.2 mm	2.8 mm	Rectangle with Flat Top
Bivar Inc. SMS1105RC	626 nm	120 °	0.8 mm	Standard	2-PLCC	20 mA	2-SMD J-Lead	Clear	Colorless	2.2 V	0.8 mm	2.5 mm	Surface Mount Right Angle	Red	250 mcd	1.2 mm	2.8 mm	Rectangle with Flat Top
Bivar Inc. SMS1105UWDW		120 °	0.8 mm	Standard	2-PLCC	20 mA	2-SMD J-Lead	Diffused		3.2 V	0.8 mm	2.5 mm	Surface Mount Right Angle	Warm White	1750 mcd	1.2 mm	2.8 mm	Rectangle with Flat Top
Bivar Inc. SMS1105UWDN	5500 K	120 °	0.8 mm	Standard	2-PLCC	20 mA	2-SMD J-Lead	Diffused	Yellow	3.4 V	0.8 mm	2.5 mm	Surface Mount Right Angle	Neutral White	1200 mcd	1.2 mm	2.8 mm	Rectangle with Flat Top
Bivar Inc. SMS1105UWDC	8000 K	120 °	0.8 mm	Standard	2-PLCC	20 mA	2-SMD J-Lead	Diffused	Yellow	3.4 V	0.8 mm	2.5 mm	Surface Mount Right Angle	Cool White	1200 mcd	1.2 mm	2.8 mm	Rectangle with Flat Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White, Warm LED Indication - Discrete 3.2V 2-SMD, J-Lead
