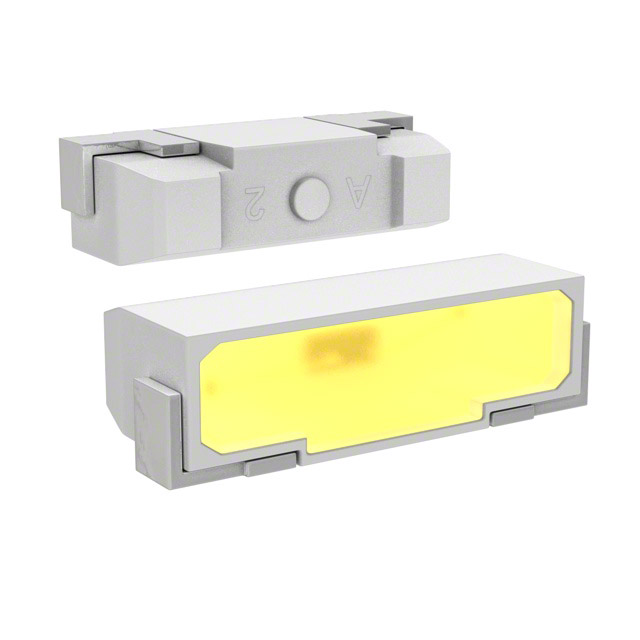

SMS1105UWDC
ActiveBivar Inc.
LED, COOL WHITE, SMD, 20 MA, 3.4 V, 1.2 CD
Deep-Dive with AI
Search across all available documentation for this part.
SMS1105UWDC
ActiveBivar Inc.
LED, COOL WHITE, SMD, 20 MA, 3.4 V, 1.2 CD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS1105UWDC |
|---|---|
| Color | Cool, White |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Color | Yellow |
| Lens Size [x] | 2.5 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1200 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
| Wavelength - Dominant | 8000 K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 54 | $ 1.38 | |
| 100 | $ 1.37 | |||
| 250 | $ 1.36 | |||
| 500 | $ 1.35 | |||
| 1000 | $ 1.33 | |||
| Digikey | Cut Tape (CT) | 1 | $ 1.60 | |
| 10 | $ 1.01 | |||
| 100 | $ 0.71 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.56 | |||
| Digi-Reel® | 1 | $ 1.60 | ||
| 10 | $ 1.01 | |||
| 100 | $ 0.71 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.56 | |||
| Tape & Reel (TR) | 3000 | $ 0.51 | ||
| 6000 | $ 0.49 | |||
| 9000 | $ 0.48 | |||
| 15000 | $ 0.47 | |||
| 21000 | $ 0.46 | |||
| Newark | Each | 2500 | $ 0.58 | |
| 10000 | $ 0.57 | |||
Description
General part information
SMS1105 Series
White, Cool 8000K LED Indication - Discrete 3.4V 2-SMD, J-Lead
