M300-FC30605F2-0300L

Active

Harwin Inc.

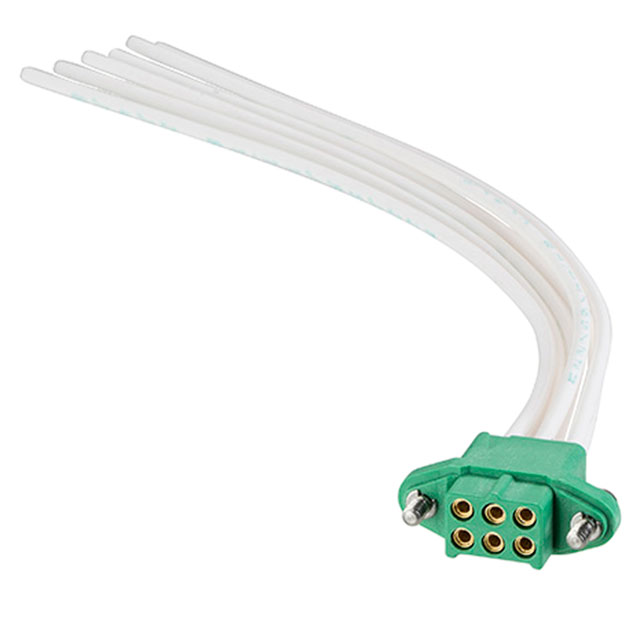

3+3 POS. FEMALE DIL 22AWG CABLE ASSEMBLY, 300MM, SINGLE-END, JACKSCREWS

Search across all available documentation for this part.

Active

Harwin Inc.

3+3 POS. FEMALE DIL 22AWG CABLE ASSEMBLY, 300MM, SINGLE-END, JACKSCREWS

Technical Specifications

Parameters and characteristics for this part

Specification	M300-FC30605F2-0300L

Cable Termination	Crimp
Connector Type	Socket to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Features	Screw Lock, Polarizing Key
Length [x]	0.984 '
Length [x]	11.81 "
Length [x]	300 mm
Number of Positions	6
Number of Rows	2
Pitch - Connector	0.118 in
Pitch - Connector	3 mm
Shielding	Unshielded

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch - Connector	Pitch - Connector	Features	Shielding	Cable Termination	Number of Positions	Length [x]	Length [x]	Number of Rows	Length	Length	Length	Length [x]
Harwin Inc. M300-FC31005F2-0450L	Socket to Individual Wire Leads	5.9 µin	0.15 µm	Gold	0.118 in	3 mm	Polarizing Key Screw Lock	Unshielded	Crimp	10	17.76 in	450 mm	2
Harwin Inc. M300-FC31005F2-0150L	Socket to Individual Wire Leads	5.9 µin	0.15 µm	Gold	0.118 in	3 mm	Polarizing Key Screw Lock	Unshielded	Crimp	10			2	150 mm	5.91 "	0.492 ft
Harwin Inc. M300-FC30605F2-0300L	Socket to Individual Wire Leads	5.9 µin	0.15 µm	Gold	0.118 in	3 mm	Polarizing Key Screw Lock	Unshielded	Crimp	6	0.984 '	300 mm	2				11.81 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Cable Assembly Rectangular Socket to Individual Wire Leads 0.984' (300.00mm, 11.81")
