M300-FC31005F2-0150L

Active

Harwin Inc.

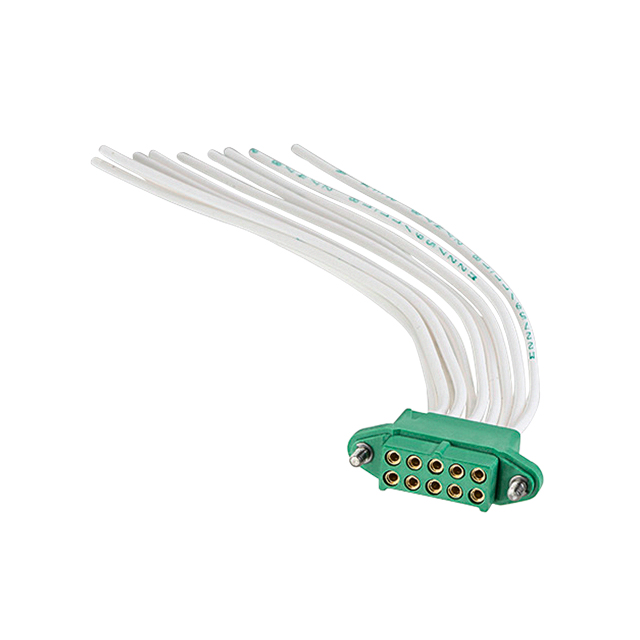

5+5 POS. FEMALE DIL 22AWG CABLE ASSEMBLY, 150MM, SINGLE-END, JACKSCREWS

Search across all available documentation for this part.

Active

Harwin Inc.

5+5 POS. FEMALE DIL 22AWG CABLE ASSEMBLY, 150MM, SINGLE-END, JACKSCREWS

Technical Specifications

Parameters and characteristics for this part

Specification	M300-FC31005F2-0150L

Cable Termination	Crimp
Connector Type	Socket to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Features	Screw Lock, Polarizing Key
Length	150 mm
Length	5.91 "
Length	0.492 ft
Number of Positions	10
Number of Rows	2
Pitch - Connector	0.118 in
Pitch - Connector	3 mm
Shielding	Unshielded

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch - Connector	Pitch - Connector	Features	Shielding	Cable Termination	Number of Positions	Length [x]	Length [x]	Number of Rows	Length	Length	Length	Length [x]
Harwin Inc. M300-FC31005F2-0450L	Socket to Individual Wire Leads	5.9 µin	0.15 µm	Gold	0.118 in	3 mm	Polarizing Key Screw Lock	Unshielded	Crimp	10	17.76 in	450 mm	2
Harwin Inc. M300-FC31005F2-0150L	Socket to Individual Wire Leads	5.9 µin	0.15 µm	Gold	0.118 in	3 mm	Polarizing Key Screw Lock	Unshielded	Crimp	10			2	150 mm	5.91 "	0.492 ft
Harwin Inc. M300-FC30605F2-0300L	Socket to Individual Wire Leads	5.9 µin	0.15 µm	Gold	0.118 in	3 mm	Polarizing Key Screw Lock	Unshielded	Crimp	6	0.984 '	300 mm	2				11.81 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Cable Assembly Rectangular Socket to Individual Wire Leads 0.492' (150.00mm, 5.91")
