801-87-027-40-002101

Active

PRECI-DIP SA

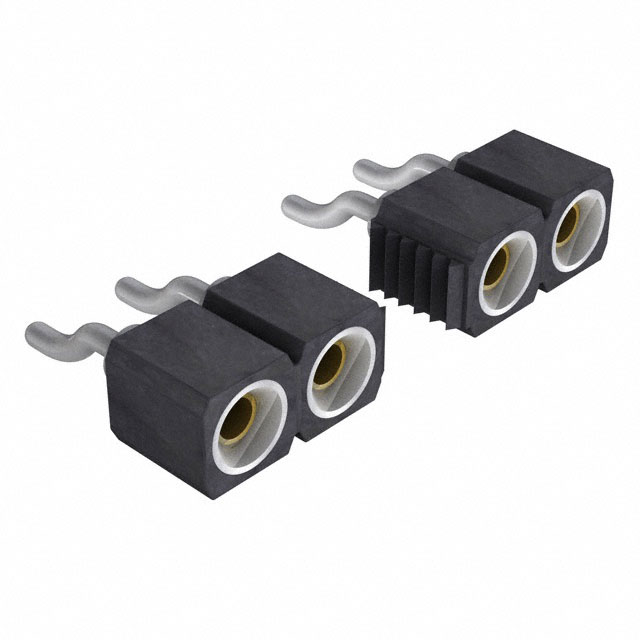

CONN SOCKET 27P 0.1 GOLD SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

801-87-027-40-002101

Active

PRECI-DIP SA

CONN SOCKET 27P 0.1 GOLD SMD R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	801-87-027-40-002101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	27
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

801-87 Series

...

Part	Current Rating (Amps)	Connector Type	Material Flammability Rating	Insulation Color	Contact Finish - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Fastening Type	Contact Material	Contact Type	Number of Rows	Contact Shape	Number of Positions Loaded	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Features	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]
PRECI-DIP SA 801-87-007-30-002191	3 A	Socket	UL94 V-0	Black	Gold	Flash	7	Surface Mount	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Beryllium Copper	Female Socket	1	Circular	All	Tin	Solder	0.1 in	2.54 mm	5.6 mm	0.22 in	Pick and Place
PRECI-DIP SA 801-87-018-10-143101	3 A	Socket	UL94 V-0	Black	Gold	Flash	18	Through Hole	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Beryllium Copper	Female Socket	1	Circular	All	Tin	Kinked Pin Solder	0.1 in	2.54 mm				0.118 in	3 mm	7 mm	0.276 in
PRECI-DIP SA 801-87-007-40-001191	3 A	Socket	UL94 V-0	Black	Gold	Flash	7	Surface Mount Right Angle	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Beryllium Copper	Female Socket	1	Circular	All	Tin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	Pick and Place
PRECI-DIP SA 801-87-023-20-002101	3 A	Socket	UL94 V-0	Black	Gold	Flash	23	Through Hole Right Angle	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Beryllium Copper	Female Socket	1	Circular	All	Tin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in			3.2 mm			0.126 in
PRECI-DIP SA 801-87-037-65-410101	3 A	Socket	UL94 V-0	Black	Gold	Flash	37	Through Hole	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Beryllium Copper	Female Socket	1	Circular	All	Tin	Press-Fit Solder	0.1 in	2.54 mm					2.79 mm	7 mm	0.276 in	0.11 in
PRECI-DIP SA 801-87-015-10-173101	3 A	Socket	UL94 V-0	Black	Gold	Flash	15	Through Hole	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Beryllium Copper	Female Socket	1	Circular	All	Tin	Kinked Pin Solder	0.1 in	2.54 mm				0.118 in	3 mm	7 mm	0.276 in
PRECI-DIP SA 801-87-003-30-002101	3 A	Socket	UL94 V-0	Black	Gold	Flash		Surface Mount	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Beryllium Copper	Female Socket	1	Circular	All	Tin	Solder	0.1 in	2.54 mm	5.6 mm	0.22 in
PRECI-DIP SA 801-87-023-10-173101	3 A	Socket	UL94 V-0	Black	Gold	Flash	23	Through Hole	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Beryllium Copper	Female Socket	1	Circular	All	Tin	Kinked Pin Solder	0.1 in	2.54 mm				0.118 in	3 mm	7 mm	0.276 in
PRECI-DIP SA 801-87-019-10-216101	3 A	Socket	UL94 V-0	Black	Gold	Flash	19	Through Hole	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Beryllium Copper	Female Socket	1	Circular	All	Tin	Solder	0.1 in	2.54 mm				0.118 in	3 mm	37.5 mm	1.476 in
PRECI-DIP SA 801-87-027-40-002101	3 A	Socket	UL94 V-0	Black	Gold	Flash	27	Surface Mount Right Angle	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	Beryllium Copper	Female Socket	1	Circular	All	Tin	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.13

Description

General part information

801-87 Series

27 Position Socket Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold

Documents

Technical documentation and resources

No documents available
