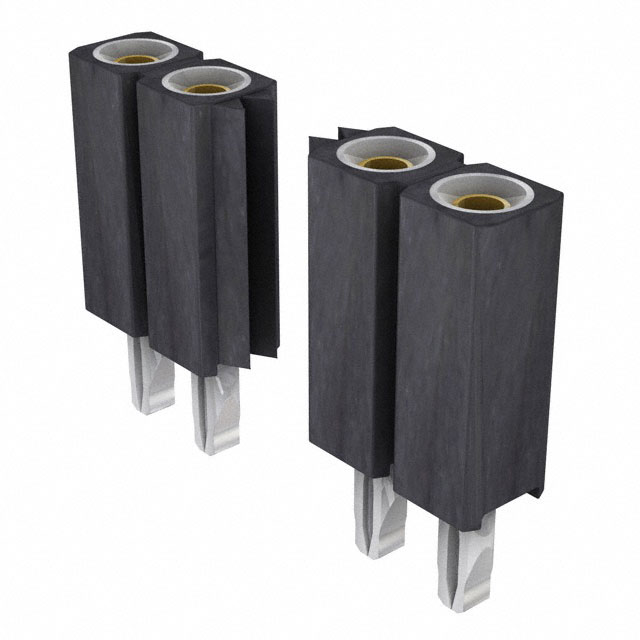

801-87-037-65-410101
ActivePRECI-DIP SA
CONN SOCKET 37POS 0.1 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
801-87-037-65-410101
ActivePRECI-DIP SA
CONN SOCKET 37POS 0.1 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 801-87-037-65-410101 |
|---|---|
| Connector Type | Socket |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 7 mm |
| Insulation Height [z] | 0.276 in |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder, Press-Fit |
801-87 Series
...
| Part | Current Rating (Amps) | Connector Type | Material Flammability Rating | Insulation Color | Contact Finish - Mating | Contact Finish Thickness - Mating | Number of Positions | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Fastening Type | Contact Material | Contact Type | Number of Rows | Contact Shape | Number of Positions Loaded | Contact Finish - Post | Termination | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Features | Contact Length - Post | Contact Length - Post | Insulation Height [z] | Insulation Height [z] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PRECI-DIP SA | 3 A | Socket | UL94 V-0 | Black | Gold | Flash | 7 | Surface Mount | -55 °C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Push-Pull | Beryllium Copper | Female Socket | 1 | Circular | All | Tin | Solder | 0.1 in | 2.54 mm | 5.6 mm | 0.22 in | Pick and Place | |||||
PRECI-DIP SA | 3 A | Socket | UL94 V-0 | Black | Gold | Flash | 18 | Through Hole | -55 °C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Push-Pull | Beryllium Copper | Female Socket | 1 | Circular | All | Tin | Kinked Pin Solder | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 7 mm | 0.276 in | ||||
PRECI-DIP SA | 3 A | Socket | UL94 V-0 | Black | Gold | Flash | 7 | Surface Mount Right Angle | -55 °C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Push-Pull | Beryllium Copper | Female Socket | 1 | Circular | All | Tin | Solder | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Pick and Place | |||||
PRECI-DIP SA | 3 A | Socket | UL94 V-0 | Black | Gold | Flash | 23 | Through Hole Right Angle | -55 °C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Push-Pull | Beryllium Copper | Female Socket | 1 | Circular | All | Tin | Solder | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | 3.2 mm | 0.126 in | ||||
PRECI-DIP SA | 3 A | Socket | UL94 V-0 | Black | Gold | Flash | 37 | Through Hole | -55 °C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Push-Pull | Beryllium Copper | Female Socket | 1 | Circular | All | Tin | Press-Fit Solder | 0.1 in | 2.54 mm | 2.79 mm | 7 mm | 0.276 in | 0.11 in | ||||
PRECI-DIP SA | 3 A | Socket | UL94 V-0 | Black | Gold | Flash | 15 | Through Hole | -55 °C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Push-Pull | Beryllium Copper | Female Socket | 1 | Circular | All | Tin | Kinked Pin Solder | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 7 mm | 0.276 in | ||||
PRECI-DIP SA | 3 A | Socket | UL94 V-0 | Black | Gold | Flash | Surface Mount | -55 °C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Push-Pull | Beryllium Copper | Female Socket | 1 | Circular | All | Tin | Solder | 0.1 in | 2.54 mm | 5.6 mm | 0.22 in | |||||||
PRECI-DIP SA | 3 A | Socket | UL94 V-0 | Black | Gold | Flash | 23 | Through Hole | -55 °C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Push-Pull | Beryllium Copper | Female Socket | 1 | Circular | All | Tin | Kinked Pin Solder | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 7 mm | 0.276 in | ||||
PRECI-DIP SA | 3 A | Socket | UL94 V-0 | Black | Gold | Flash | 19 | Through Hole | -55 °C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Push-Pull | Beryllium Copper | Female Socket | 1 | Circular | All | Tin | Solder | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 37.5 mm | 1.476 in | ||||
PRECI-DIP SA | 3 A | Socket | UL94 V-0 | Black | Gold | Flash | 27 | Surface Mount Right Angle | -55 °C | 125 °C | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Push-Pull | Beryllium Copper | Female Socket | 1 | Circular | All | Tin | Solder | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 7.26 | |
Description
General part information
801-87 Series
37 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
