0192040009

Active

Molex

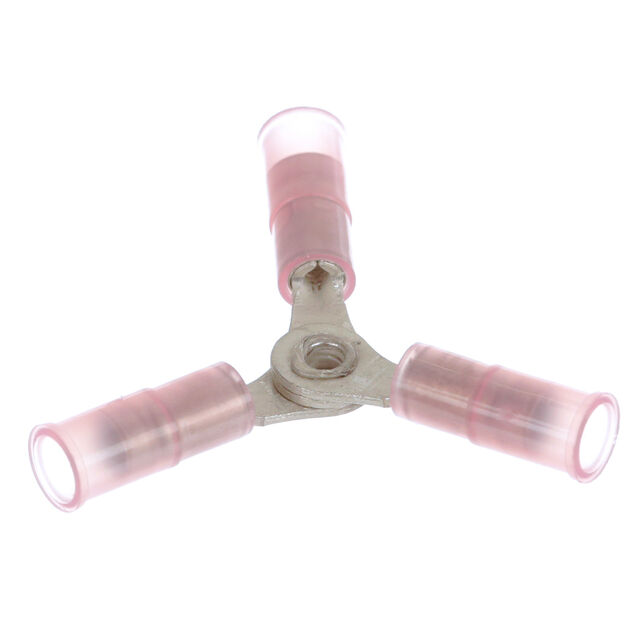

CONN 3 WAY SPLICE 18-22AWG CRIMP

Search across all available documentation for this part.

Active

Molex

CONN 3 WAY SPLICE 18-22AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Number of Wire Entries	Color	Termination	Terminal Type	Insulation	Wire Gauge [Max]	Wire Gauge [Min]
Molex 0192040030	3	Natural	Crimp	3 Way Splice	Partial Insulation	12 AWG	10 AWG
Molex 0192040024	3		Crimp	3 Way Splice	Partial Insulation
Molex 0192040013	4	Natural	Crimp	4 Way Splice	Partial Insulation
Molex 0192040017	4	Natural	Crimp	4 Way Splice	Partial Insulation
Molex 0192040009	3		Crimp	3 Way Splice	Partial Insulation	22 AWG	17.5 AWG
Molex 0192040029	4	Natural	Crimp	4 Way Splice	Partial Insulation	12 AWG	10 AWG
Molex 0192040070	3	Natural	Crimp	3 Way Splice	Partial Insulation
Molex 0192040023	4		Crimp	4 Way Splice	Partial Insulation
Molex 0192040012	3		Crimp	3 Way Splice	Partial Insulation
Molex 0192040002	3		Crimp	3 Way Splice	Partial Insulation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 1.48

General part information

Terminal 3 Way Splice Connector Crimp 18-22 AWG
