0192040017
ActiveMolex

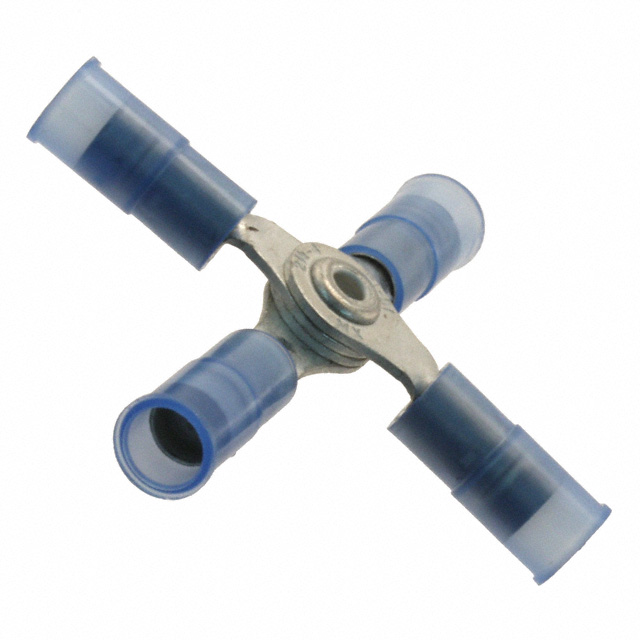

CONN 4 WAY SPLICE 14-16AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
0192040017
ActiveMolex
CONN 4 WAY SPLICE 14-16AWG CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0192040017 |
|---|---|
| Color | Natural |
| Insulation | Partial Insulation |
| Number of Wire Entries | 4 |
| Terminal Type | 4 Way Splice |
| Termination | Crimp |
019204 Series
| Part | Number of Wire Entries | Color | Termination | Terminal Type | Insulation | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|
Molex | 3 | Natural | Crimp | 3 Way Splice | Partial Insulation | 12 AWG | 10 AWG |
Molex | 3 | Crimp | 3 Way Splice | Partial Insulation | |||
Molex | 4 | Natural | Crimp | 4 Way Splice | Partial Insulation | ||
Molex | 4 | Natural | Crimp | 4 Way Splice | Partial Insulation | ||
Molex | 3 | Crimp | 3 Way Splice | Partial Insulation | 22 AWG | 17.5 AWG | |
Molex | 4 | Natural | Crimp | 4 Way Splice | Partial Insulation | 12 AWG | 10 AWG |
Molex | 3 | Natural | Crimp | 3 Way Splice | Partial Insulation | ||
Molex | 4 | Crimp | 4 Way Splice | Partial Insulation | |||
Molex | 3 | Crimp | 3 Way Splice | Partial Insulation | |||
Molex | 3 | Crimp | 3 Way Splice | Partial Insulation |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 1.71 | |
Description
General part information
019204 Series
Terminal 4 Way Splice Connector Crimp 14-16 AWG Natural
