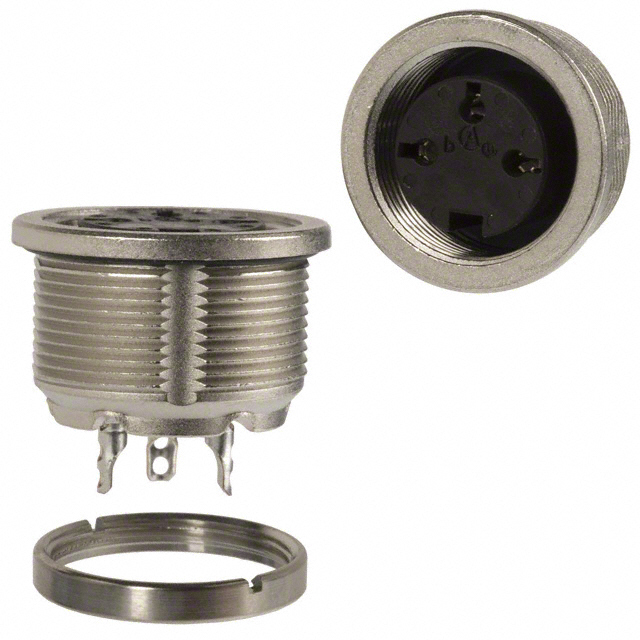

C09131N0031002U
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 3P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
C09131N0031002U
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 3P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C09131N0031002U |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 10 A |
| Ingress Protection | IP69K, IP65, IP67 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-3 |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.55 | |
| 10 | $ 10.41 | |||
| 25 | $ 9.41 | |||
| 50 | $ 8.73 | |||
| 100 | $ 8.12 | |||
| 250 | $ 7.39 | |||
| 500 | $ 6.91 | |||
| 1000 | $ 6.47 | |||
Description
General part information
C09131N Series
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
