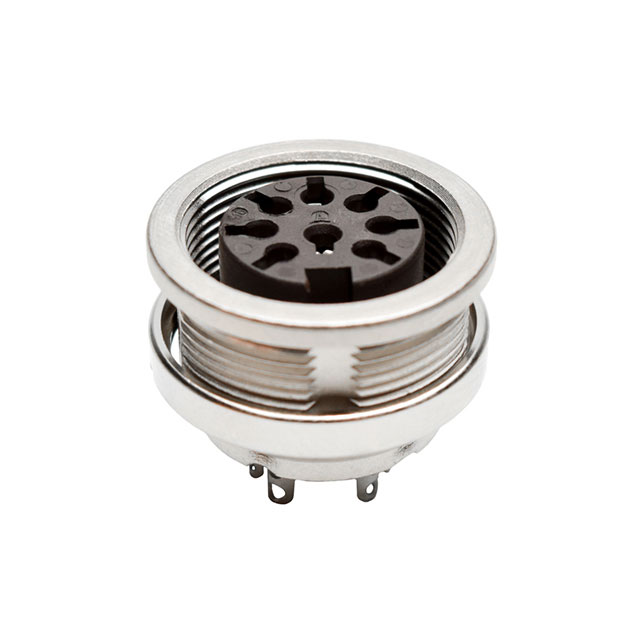

C09131N0081002U
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 8P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
C09131N0081002U
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 8P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C09131N0081002U |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 7 A |
| Ingress Protection | IP69K, IP65, IP67 |
| Number of Positions | 8 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-8 |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.97 | |
| 10 | $ 8.83 | |||
| 25 | $ 8.49 | |||
| 50 | $ 8.15 | |||
| 200 | $ 7.97 | |||
Description
General part information
C09131N Series
8 Position Circular Connector Receptacle, Female Sockets Solder Cup
