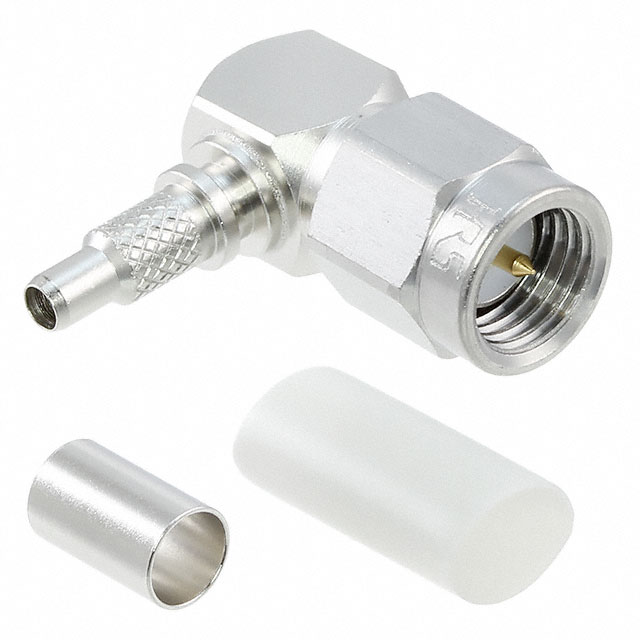

HRM-200-4S-C(40)

Active

Hirose Electric USA, Inc.

SMA (SUB-MINIATURE TYPE A) COAXIAL CONNECTORS (MIL-C-39012)

Deep-Dive with AI

Search across all available documentation for this part.

HRM-200-4S-C(40)

Active

Hirose Electric USA, Inc.

SMA (SUB-MINIATURE TYPE A) COAXIAL CONNECTORS (MIL-C-39012)

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HRM-200-4S-C(40)

Body Finish	Nickel
Body Material	Stainless Steel
Cable Group	1.5D-2V
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Crimp

HRM-200 Series

Part	Center Contact Plating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Connector Type	Impedance	Body Material	Mating Cycles	Mounting Type	Center Contact Material	Frequency - Max [Max]	Housing Color	Connector Style	Shield Termination	Number of Ports	Dielectric Material	Cable Group	Mounting Feature
Hirose Electric USA, Inc. HRM-200-040PBN(40)	Gold	Solder	-55 °C	125 °C	Nickel	Male Pin Plug	50 Ohms	Brass	1000	Free Hanging (In-Line)	Brass	8 GHz	Silver	SMA	Clamp	1	Polytetrafluoroethylene (PTFE)
Hirose Electric USA, Inc. HRM-200-1.5WBPJBN
Hirose Electric USA, Inc. HRM-200-1.5WJBN(40)	Gold	Solder	-55 °C	125 °C	Nickel	Female Socket Jack	50 Ohms	Brass	1000	Free Hanging (In-Line)	Beryllium Copper	6000 MHz	Silver	SMA	Crimp	1	Polytetrafluoroethylene (PTFE)	1.5D-2W
Hirose Electric USA, Inc. HRM-200-1.5WPJ4BN(40)
Hirose Electric USA, Inc. HRM-200-4S-C(40)	Gold	Solder	-30 ░C	85 °C	Nickel	Male Pin Plug	50 Ohms	Stainless Steel	1000	Free Hanging (In-Line) Right Angle	Brass	1 GHz	Silver	SMA	Crimp	1	Polytetrafluoroethylene (PTFE)	1.5D-2V
Hirose Electric USA, Inc. HRM-200-2-1C(40)	Gold	Solder	-55 °C	125 °C	Gold	Male Pin Plug	50 Ohms	Stainless Steel	1000	Free Hanging (In-Line)	Brass	1 GHz	Gold	SMA	Crimp	1	Polytetrafluoroethylene (PTFE)	1.5D-HQEW
Hirose Electric USA, Inc. HRM-200-040PJ4BN(40)	Gold	Solder	-55 °C	125 °C	Nickel	Female Socket Jack	50 Ohms	Brass	1000		Beryllium Copper	8 GHz	Silver	SMA	Clamp	1	Polytetrafluoroethylene (PTFE)		Flange
Hirose Electric USA, Inc. HRM-200-4S-1C(40)	Gold	Solder	-30 ░C	85 °C	Nickel	Male Pin Plug	50 Ohms	Stainless Steel	1000	Free Hanging (In-Line) Right Angle	Brass	1 GHz	Silver	SMA	Crimp	1	Polytetrafluoroethylene (PTFE)	1.5D-2W
Hirose Electric USA, Inc. HRM-200-2B-C(40)
Hirose Electric USA, Inc. HRM-200-040BPJBN(40)	Gold	Solder	-55 °C	125 °C	Nickel	Female Socket Jack	50 Ohms	Brass	1000		Beryllium Copper	8 GHz	Silver	SMA	Clamp	1	Polytetrafluoroethylene (PTFE)		Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.90
		25	$ 27.00
		50	$ 26.10
		100	$ 24.80
		250	$ 23.88
Newark	Each	1	$ 43.20
		60	$ 38.20

Description

General part information

HRM-200 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
