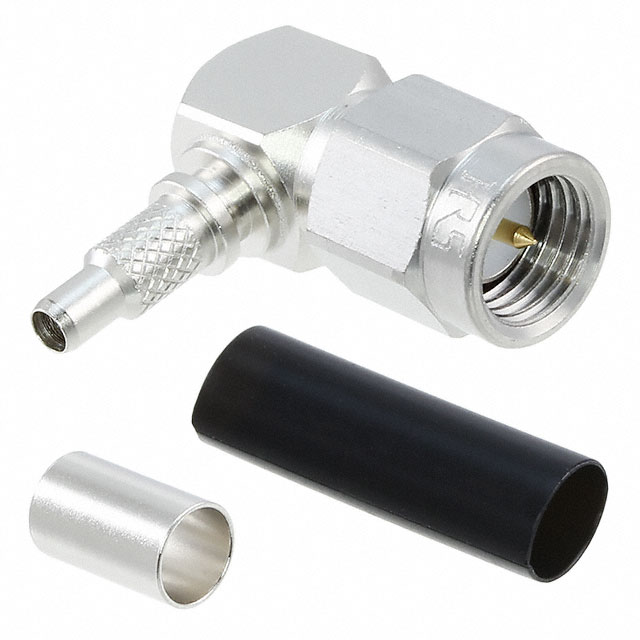

HRM-200-4S-1C(40)
ActiveHirose Electric USA, Inc.
CONN SMA PLUG R/A 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
HRM-200-4S-1C(40)
ActiveHirose Electric USA, Inc.
CONN SMA PLUG R/A 50OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HRM-200-4S-1C(40) |
|---|---|
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Cable Group | 1.5D-2W |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 1 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shield Termination | Crimp |
HRM-200 Series
| Part | Center Contact Plating | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Connector Type | Impedance | Body Material | Mating Cycles | Mounting Type | Center Contact Material | Frequency - Max [Max] | Housing Color | Connector Style | Shield Termination | Number of Ports | Dielectric Material | Cable Group | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Gold | Solder | -55 °C | 125 °C | Nickel | Male Pin Plug | 50 Ohms | Brass | 1000 | Free Hanging (In-Line) | Brass | 8 GHz | Silver | SMA | Clamp | 1 | Polytetrafluoroethylene (PTFE) | ||
Hirose Electric USA, Inc. | |||||||||||||||||||
Hirose Electric USA, Inc. | Gold | Solder | -55 °C | 125 °C | Nickel | Female Socket Jack | 50 Ohms | Brass | 1000 | Free Hanging (In-Line) | Beryllium Copper | 6000 MHz | Silver | SMA | Crimp | 1 | Polytetrafluoroethylene (PTFE) | 1.5D-2W | |
Hirose Electric USA, Inc. | |||||||||||||||||||
Hirose Electric USA, Inc. | Gold | Solder | -30 ░C | 85 °C | Nickel | Male Pin Plug | 50 Ohms | Stainless Steel | 1000 | Free Hanging (In-Line) Right Angle | Brass | 1 GHz | Silver | SMA | Crimp | 1 | Polytetrafluoroethylene (PTFE) | 1.5D-2V | |
Hirose Electric USA, Inc. | Gold | Solder | -55 °C | 125 °C | Gold | Male Pin Plug | 50 Ohms | Stainless Steel | 1000 | Free Hanging (In-Line) | Brass | 1 GHz | Gold | SMA | Crimp | 1 | Polytetrafluoroethylene (PTFE) | 1.5D-HQEW | |
Hirose Electric USA, Inc. | Gold | Solder | -55 °C | 125 °C | Nickel | Female Socket Jack | 50 Ohms | Brass | 1000 | Beryllium Copper | 8 GHz | Silver | SMA | Clamp | 1 | Polytetrafluoroethylene (PTFE) | Flange | ||
Hirose Electric USA, Inc. | Gold | Solder | -30 ░C | 85 °C | Nickel | Male Pin Plug | 50 Ohms | Stainless Steel | 1000 | Free Hanging (In-Line) Right Angle | Brass | 1 GHz | Silver | SMA | Crimp | 1 | Polytetrafluoroethylene (PTFE) | 1.5D-2W | |
Hirose Electric USA, Inc. | |||||||||||||||||||
Hirose Electric USA, Inc. | Gold | Solder | -55 °C | 125 °C | Nickel | Female Socket Jack | 50 Ohms | Brass | 1000 | Beryllium Copper | 8 GHz | Silver | SMA | Clamp | 1 | Polytetrafluoroethylene (PTFE) | Bulkhead - Front Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.90 | |
| 25 | $ 19.30 | |||
| 50 | $ 18.60 | |||
| 100 | $ 17.70 | |||
| 250 | $ 17.00 | |||
Description
General part information
HRM-200 Series
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Documents
Technical documentation and resources
No documents available
