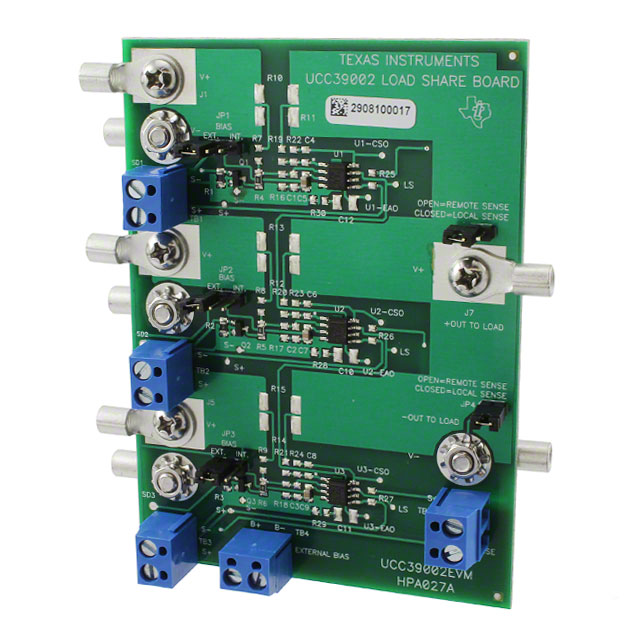

UCC39002EVM

Active

Texas Instruments

EVAL MODULE FOR UCC39002

Search across all available documentation for this part.

Active

Texas Instruments

EVAL MODULE FOR UCC39002

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Package / Case	Package / Case	Package / Case	Current - Supply	Mounting Type	Supplier Device Package	Package / Case [y]	Package / Case [x]	Package / Case [custom]	Function	Utilized IC / Part	Type	Supplied Contents
Texas Instruments UCC39002P	4.375 V	14.25 V	70 °C	0 °C	Load Share Controller	0.3 in	8-DIP	7.62 mm	2.5 mA	Through Hole	8-PDIP
Texas Instruments UCC39002D	4.375 V	14.25 V	70 °C	0 °C	Load Share Controller		8-SOIC		2.5 mA	Surface Mount	8-SOIC	3.9 mm	0.154 in
Texas Instruments UCC39002DR	4.375 V	14.25 V	70 °C	0 °C	Load Share Controller		8-SOIC		2.5 mA	Surface Mount	8-SOIC	3.9 mm	0.154 in
Texas Instruments UCC39002DGKR	4.375 V	14.25 V	70 °C	0 °C	Load Share Controller	3 mm	8-MSOP 8-TSSOP		2.5 mA	Surface Mount				0.118 in
Texas Instruments UCC39002EVM															ORing Controller / Load Share	UCC39002	Power Management	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 118.80

General part information

UCC39002 ORing Controller / Load Share Power Management Evaluation Board
