UCC39002DGKR
ActiveADVANCED 8 PIN LOAD SHARE CONTROLLER, 0°C TO 70°C
Deep-Dive with AI
Search across all available documentation for this part.
UCC39002DGKR
ActiveADVANCED 8 PIN LOAD SHARE CONTROLLER, 0°C TO 70°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UCC39002DGKR |
|---|---|
| Applications | Load Share Controller |
| Current - Supply | 2.5 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |

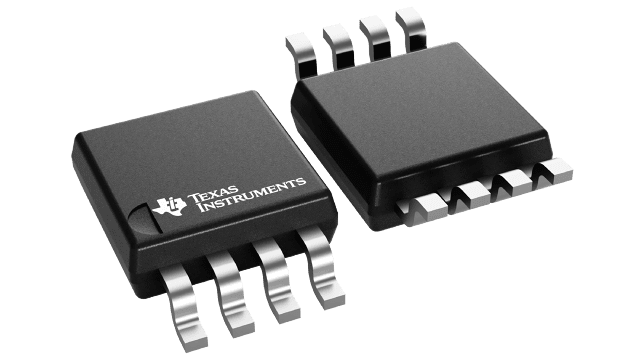

| Package / Case | 8-MSOP, 8-TSSOP |
| Package / Case | 3 mm |
| Package / Case [custom] | 0.118 in |
| Voltage - Supply [Max] | 14.25 V |
| Voltage - Supply [Min] | 4.375 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 1.35 | |
| 5000 | $ 1.30 | |||
| Texas Instruments | LARGE T&R | 1 | $ 2.03 | |
| 100 | $ 1.78 | |||
| 250 | $ 1.25 | |||
| 1000 | $ 1.01 | |||
Description
General part information
UCC39002 Series
The UCC29002 device family comprises advanced, high-performance, low-cost load-share controllers that provide all necessary functions to parallel multiple independent power supplies or DC-to-DC modules. Targeted for high-reliability applications in server, workstation, telecom, and other distributed power systems, the controller is suitable for N+1 redundant systems or high-current applications where off-the-shelf power supplies must be paralleled.
The BiCMOS UCC29002 is based on the automatic leader/follower architecture of predecessorUC3902andUC3907load-share controllers. The device is capable of better than 1% current-share error between modules at full load by using a very-low offset post-package-trimmed current-sense amplifier and a high-gain negative-feedback loop. With an amplifier common-mode range of 0V to the VDD supply rail, the current-sense resistor, RSHUNT, can be placed in either the GND return path or in the positive output rail of the power supply.
The UCC29002 device family comprises advanced, high-performance, low-cost load-share controllers that provide all necessary functions to parallel multiple independent power supplies or DC-to-DC modules. Targeted for high-reliability applications in server, workstation, telecom, and other distributed power systems, the controller is suitable for N+1 redundant systems or high-current applications where off-the-shelf power supplies must be paralleled.
