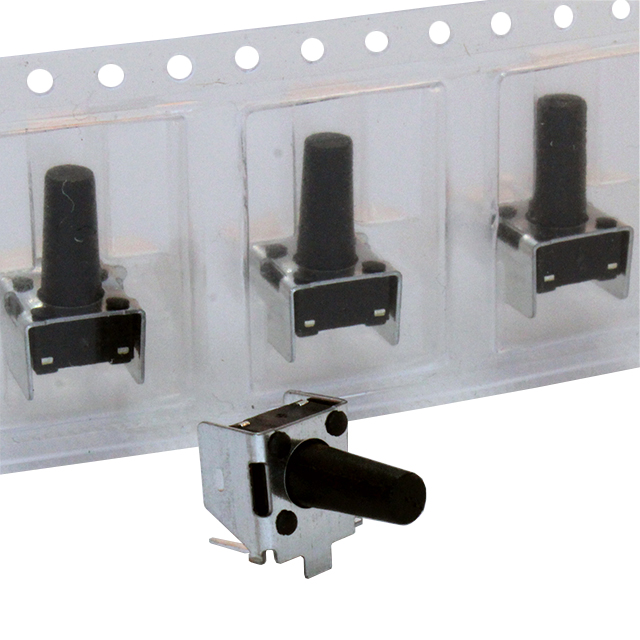

CS1102V8.35F160
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 50V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS1102V8.35F160
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 50V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS1102V8.35F160 |
|---|---|
| Actuator Height off PCB, Vertical | 8.35 mm |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 50 VDC, 0.05 A |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 7.1 mm |
| Outline [y] | 6.3 mm |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
CS1102V Series
| Part | Mounting Type | Actuator Orientation | Actuator Material | Actuator Type | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Outline [y] | Outline [x] | Termination Style | Contact Rating @ Voltage | Illumination | Circuit | Actuator Height off PCB, Vertical [z] | Operating Force | Switch Travel | Actuator Length, Right Angle | Actuator Length, Right Angle [x] | Actuator Height off PCB, Vertical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CIT Relay and Switch | Through Hole | Top Actuated | Nylon 4/6 Polyamide (PA46) | Standard | Off-Mom | 85 °C | -40 °C | 6.3 mm | 7.1 mm | PC Pin | 0.05 A 50 VDC | Non-Illuminated | SPST-NO | 11.85 mm | |||||
CIT Relay and Switch | Surface Mount Right Angle | Side Actuated | Nylon 4/6 Polyamide (PA46) | Standard | Off-Mom | 85 °C | -40 °C | 7.1 mm | 7.5 mm | Gull Wing | 0.05 A 50 VDC | Non-Illuminated | SPST-NO | 100 gf | 0.25 mm | 3.85 mm | |||
CIT Relay and Switch | Surface Mount Right Angle | Side Actuated | Nylon 4/6 Polyamide (PA46) | Standard | Off-Mom | 85 °C | -40 °C | 6.3 mm | 7.1 mm | Gull Wing | 0.05 A 50 VDC | Non-Illuminated | SPST-NO | 260 gf | 0.25 mm | 3.15 mm | |||
CIT Relay and Switch | Surface Mount Right Angle | Side Actuated | Nylon 4/6 Polyamide (PA46) | Standard | Off-Mom | 85 °C | -40 °C | 6.3 mm | 7.1 mm | Gull Wing | 0.05 A 50 VDC | Non-Illuminated | SPST-NO | 260 gf | 0.25 mm | 5.85 mm | |||
CIT Relay and Switch | Surface Mount Right Angle | Side Actuated | Nylon 4/6 Polyamide (PA46) | Standard | Off-Mom | 85 °C | -40 °C | 6.3 mm | 7.1 mm | Gull Wing | 0.05 A 50 VDC | Non-Illuminated | SPST-NO | 260 gf | 0.25 mm | 11.85 mm | |||
CIT Relay and Switch | Surface Mount Right Angle | Side Actuated | Nylon 4/6 Polyamide (PA46) | Standard | Off-Mom | 85 °C | -40 °C | 6.3 mm | 7.1 mm | Gull Wing | 0.05 A 50 VDC | Non-Illuminated | SPST-NO | 260 gf | 0.25 mm | 6.85 mm | |||
CIT Relay and Switch | Surface Mount Right Angle | Side Actuated | Nylon 4/6 Polyamide (PA46) | Standard | Off-Mom | 85 °C | -40 °C | 6.3 mm | 7.1 mm | Gull Wing | 0.05 A 50 VDC | Non-Illuminated | SPST-NO | 100 gf | 0.25 mm | 11.85 mm | |||
CIT Relay and Switch | Through Hole | Top Actuated | Nylon 4/6 Polyamide (PA46) | Standard | Off-Mom | 85 °C | -40 °C | 6.3 mm | 7.1 mm | PC Pin | 0.05 A 50 VDC | Non-Illuminated | SPST-NO | 8.35 mm | |||||
CIT Relay and Switch | Surface Mount Right Angle | Side Actuated | Nylon 4/6 Polyamide (PA46) | Standard | Off-Mom | 85 °C | -40 °C | 6.3 mm | 7.1 mm | Gull Wing | 0.05 A 50 VDC | Non-Illuminated | SPST-NO | 260 gf | 0.25 mm | 8.35 mm | |||
CIT Relay and Switch | Through Hole | Top Actuated | Nylon 4/6 Polyamide (PA46) | Standard | Off-Mom | 85 °C | -40 °C | 6.3 mm | 7.1 mm | PC Pin | 0.05 A 50 VDC | Non-Illuminated | SPST-NO | 3.15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.41 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.33 | |||
| Tape & Reel (TR) | 500 | $ 0.30 | ||
| 1000 | $ 0.27 | |||
| 2500 | $ 0.26 | |||
| 5000 | $ 0.24 | |||
| 12500 | $ 0.22 | |||
Description
General part information
CS1102V Series
Tactile Switch SPST-NO Top Actuated Through Hole
